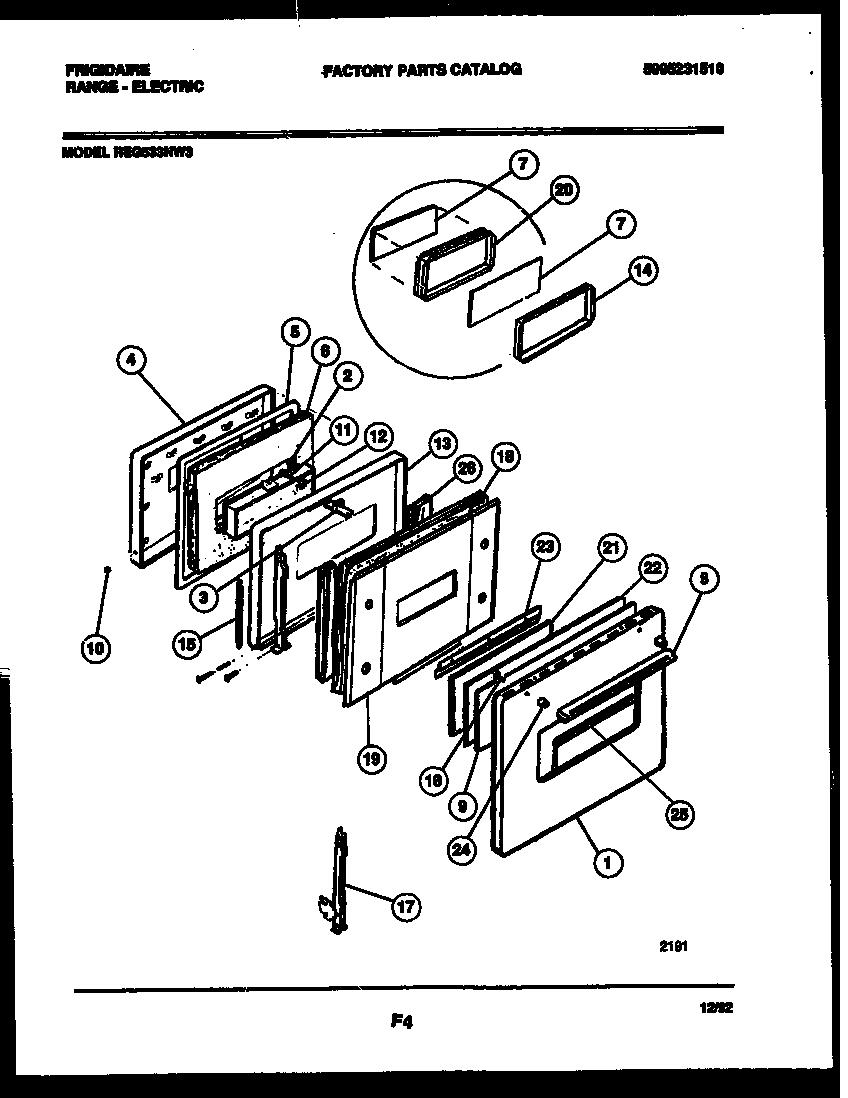

REG533NW3 04 – DOOR PARTS

REG533NW3 04 – DOOR PARTS

Written by

in

REG533NW3 04 – DOOR PARTS

Products

PositionProduct
1WCI 5303271324
2GASKET-GLASS
3WCI 5301167830
4WCI 5303293391
5SEAL, DOOR
6WCI 5303269528
7GLASS-OVEN DOOR, HEAT BARRIER, (2)
8HANDLE
9WCI 5301318805
10BUTTON PLUG
115303292012 Frigidaire Oven Screw
13WCI 5303293392
14WCI 5303269564
15WCI 08003264
16WCI 08013443
17HINGE-ASSEMBLY (2)
18INSULATION-AIRWASH
19WCI 5303269570
20WCI 5303269679
21WCI 5303269526
22PANEL-INSULATOR PAD
23BRACKET-MTG (2)
24SPACER (2)
25MOULDING OUTER GLASS
26WCI 5303269530
