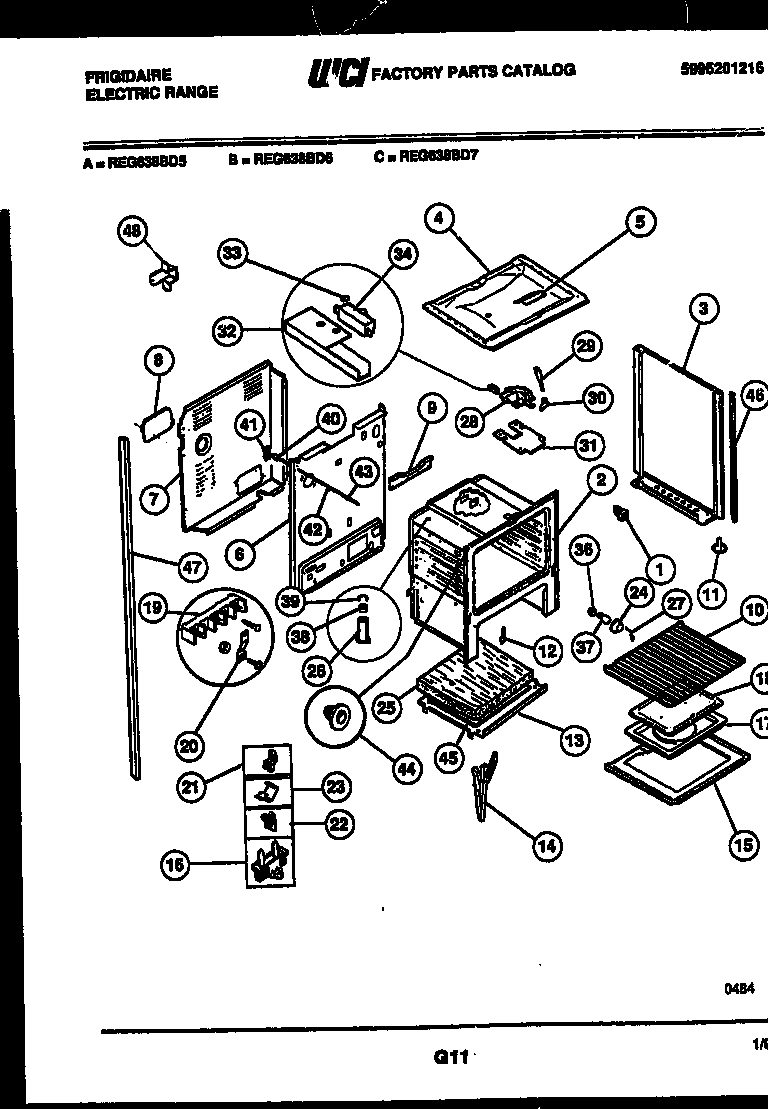

REG638BDL5 10 – LOWER BODY PARTS

Products

Position	Product
*10479	INSULATION, OVEN TOP
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-ALMOND
3	PNL-BODYSIDE LH-ALMOND
4	WCI 08067749
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 5303051385
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27C	INSULATION-BACK (NON-ILLUSTRATED)
27A	INSULATION, OVEN WRAPPER
27D	3131903 Frigidaire Door/Drawer Bumper
27B	WCI 19100230001
27	RETAINER-GLASS
28	WCI 5303015361
29	WCI 5303131357
30	WCI 5308010597
30A	WCI 08013188
31	WCI 08067780
32	SHIELD-BI MTL LATCH
33	FSTNR-PUSH ON
34	WCI 08067781
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	BRKT MAIN TOP HNG RH
42	ROD, LIGHT
43	WCI 08067758
44	WCI 08067750
45	WCI 3200848
45A	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45B	FASTENER-EDGE MTG (NOT ILLUSTRATED)
46	TRIM – VERTICAL B/S (2)
47B	ANTI-TIP KIT (NOT ILLUSTRATED)
47	WCI 08067743
47A	WCI 08067744
48	WCI 3203582
