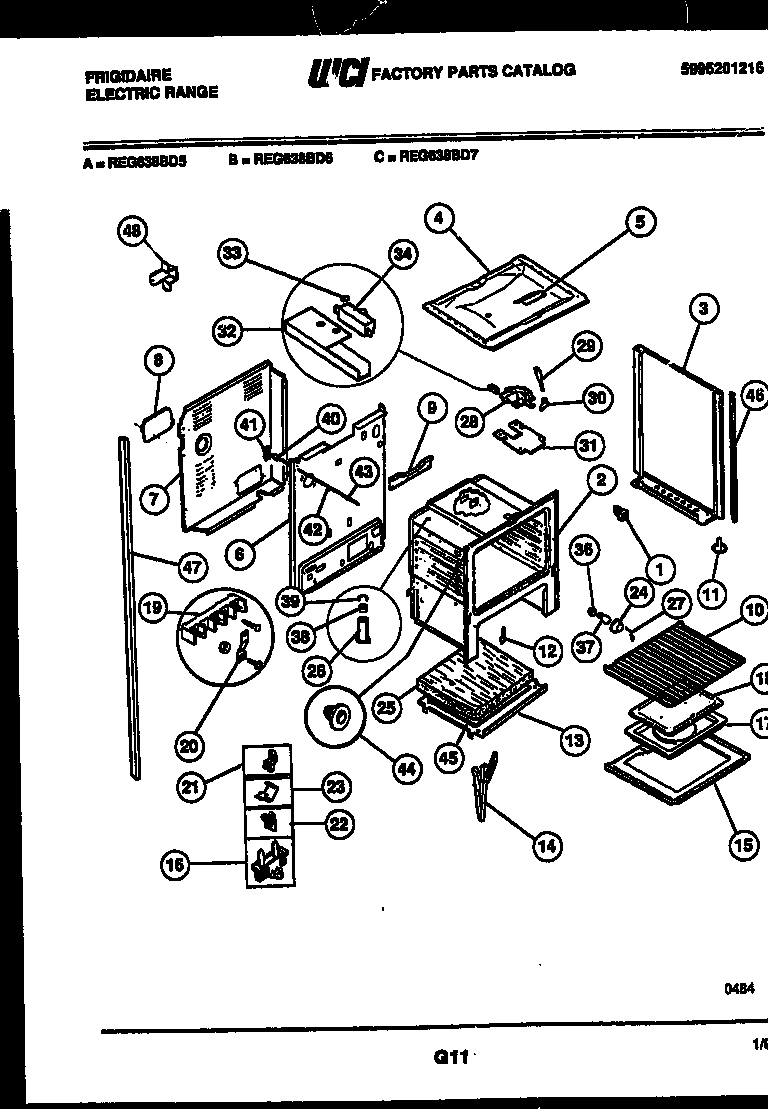

REG638BDL6 10 – LOWER BODY PARTS

Products

Position	Product
*10479	INSULATION, OVEN TOP
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-ALMOND
3	PNL-BODYSIDE LH-ALMOND
4	WCI 08067749
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 5303051385
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27D	3131903 Frigidaire Door/Drawer Bumper
27B	WCI 19100230001
27	RETAINER-GLASS
27C	INSULATION-BACK (NON-ILLUSTRATED)
27A	INSULATION, OVEN WRAPPER
28	WCI 5303015361
29	WCI 5303131357
30	WCI 5308010597
30A	WCI 08013188
31	WCI 08067780
32	SHIELD-BI MTL LATCH
33	FSTNR-PUSH ON
34	WCI 08067781
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	BRKT MAIN TOP HNG RH
42	ROD, LIGHT
43	WCI 08067758
44	WCI 08067750
45	WCI 3200848
45A	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45B	FASTENER-EDGE MTG (NOT ILLUSTRATED)
46	TRIM – VERTICAL B/S (2)
47A	TUBE-POST LH
47	WCI 5303208642
47B	ANTI-TIP KIT (NOT ILLUSTRATED)
48	WCI 3203582
