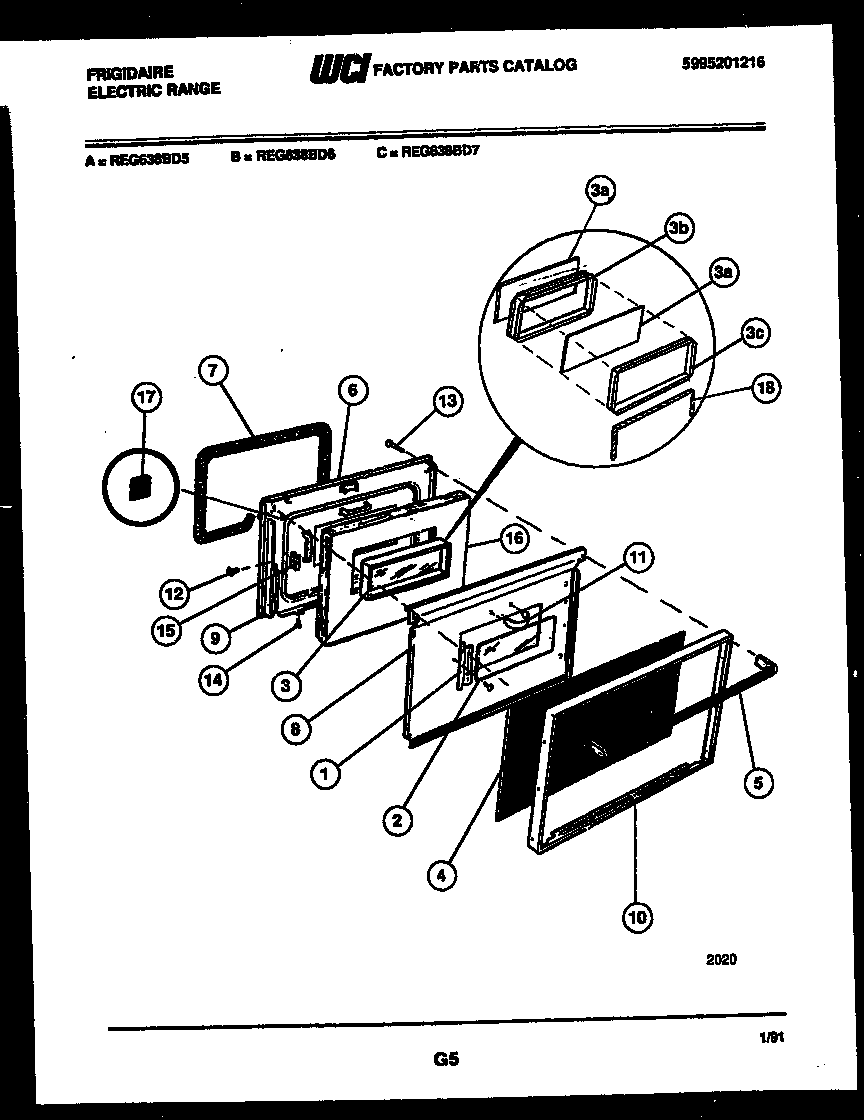

REG638BDL7 06 – LOWER OVEN DOOR PARTS

REG638BDL7 06 – LOWER OVEN DOOR PARTS

Written by

in

REG638BDL7 06 – LOWER OVEN DOOR PARTS

Products

PositionProduct
*104725303300265 Frigidaire Oven Screw
*10472WCI 3131236
*10472FSTNR-NYLON SPACER (NON-ILLUSTRATED)
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3CWCI 5303209511
3BWCI 5303209517
3AGLASS-OVEN DOOR, HEAT BARRIER, (2)
4GLASS FRNT
5HANDLE
6WCI 5303209515
75303131601 Frigidaire Oven Seal
8SHIELD-INSULATION
10WCI 5303209518
13WCI 3016851
14SCREW DOOR MTG
16INSULATION-OVEN DOOR
18SEAL-ROPE, 0.25 DIA
