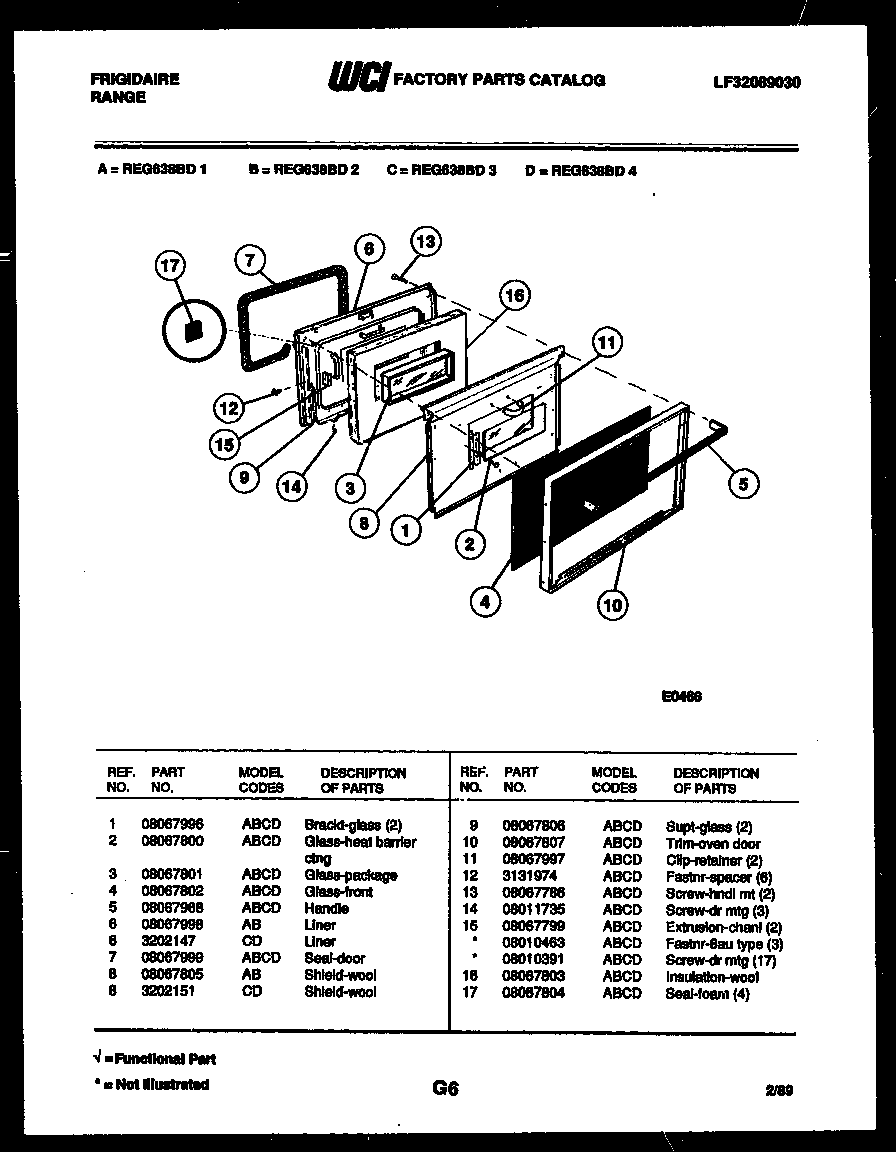

REG638BDW2 06 – LOWER OVEN DOOR PARTS

REG638BDW2 06 – LOWER OVEN DOOR PARTS

Written by

in

REG638BDW2 06 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WCI 08067996
2GLASS-HEAT BARRIER CTNG
3GLASS-PACKAGE
4WCI 08067802
5WCI 08067968
6LINER
75303131601 Frigidaire Oven Seal
8WCI 08067805
9SUPT-GLASS (2)
10WCI 08067807
11WCI 08067997
12FSTNR. SPACER (6)
13SCREW-HNDL MT (2)
14WCI 08011735
15WCI 08067799
15AWCI 08010463
15B5303300265 Frigidaire Oven Screw
16INSULATION, WOOL
17WCI 08067804
