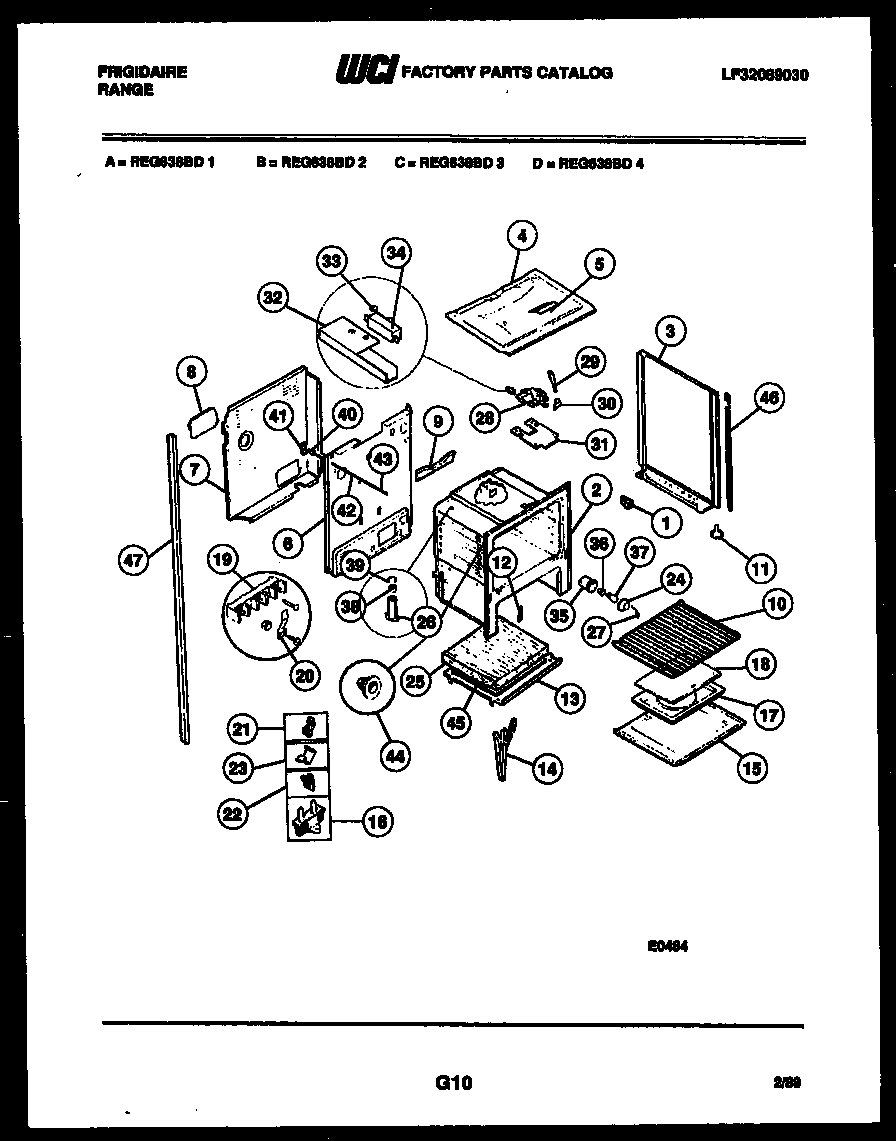

REG638BDW2 09 – LOWER BODY PARTS

Products

Position	Product
3	B/S-LH-(WHITE)
3	B/S-RH-(WHITE)
4	WCI 08067749
5	WCI 08067757
6	WCI 08067728
7	WCI 08067789
8	WCI 08067756
9	WCI 08067755
10	316067902 Frigidaire Oven Rack
11	WCI 08010569
12	CVR-HNG CUTOUT (2)
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 08067745
16	WCI 08067764
17	BROILER PAN
18	WCI 08016608
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08067742
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 08067753
24	WCI 08067765
26	WCI 08067811
27B	INSULATION-BACK (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27	WIRE-GLASS RETAINR
28	WCI 08067778
29	WCI 08067777
30A	WCI 08013188
30	WCI 08013189
31	WCI 08067780
32	SHIELD-BI MTL LATCH
33	FSTNR-PUSH ON
34	WCI 08067781
35	WCI 08067809
36	SOCKET-OVEN LIGHT
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08010607
39	WCI 08010606
40	WCI 08067993
41	BRACKT-HNG-RH
42	ROD, LIGHT
43	WCI 08067758
44	WCI 08067750
45	WCI 3200848
45D	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45C	316403803 Frigidaire Insulation
45A	INSULATION, OVEN WRAPPER
46	TRIM-VERTICAL BODYSIDE (2)
47	WCI 08067743
47	WCI 08067744
