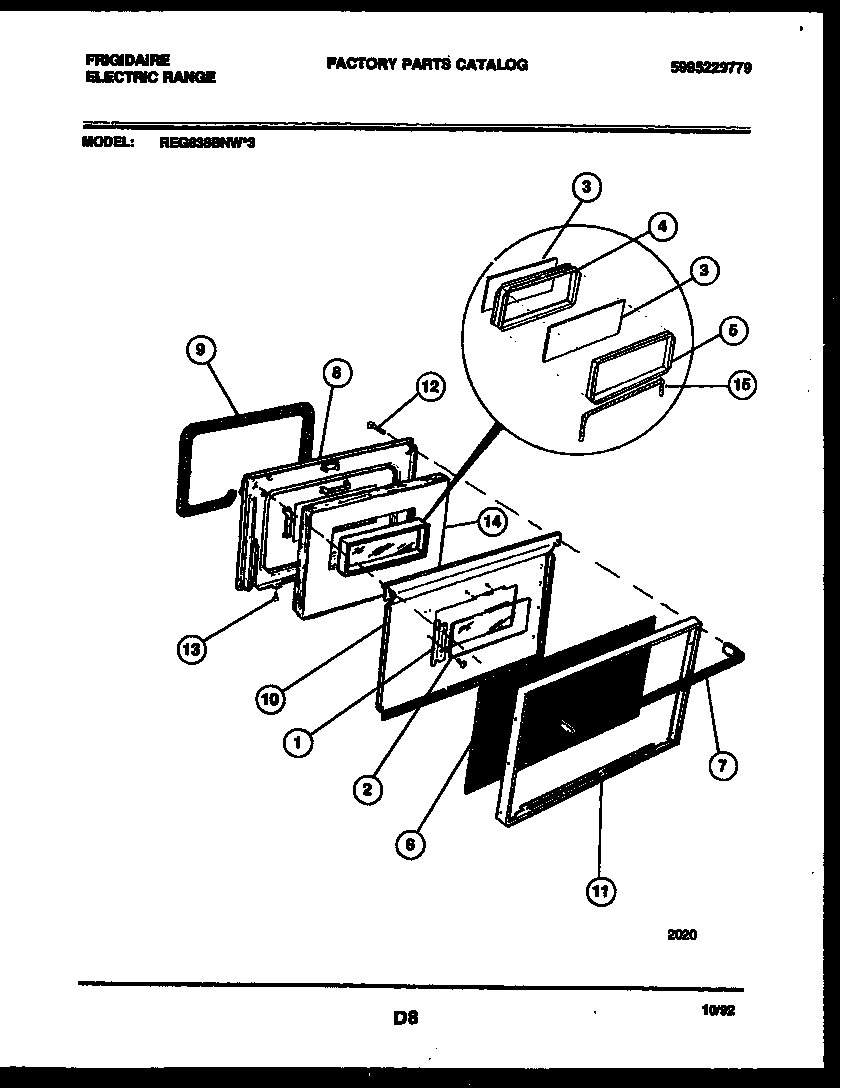

REG638BNL3 06 – LOWER OVEN DOOR PARTS

REG638BNL3 06 – LOWER OVEN DOOR PARTS

Written by

in

REG638BNL3 06 – LOWER OVEN DOOR PARTS

Products

PositionProduct
*680045303300265 Frigidaire Oven Screw
*680045303208655 Frigidaire Reflector Assembly
*68004REFLECTOR, ALUMINUM FOIL
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4WCI 5303209517
5WCI 5303209511
6GLASS-FRONT VISULITE
7WCI 5303285070
8WCI 5303209515
95303131601 Frigidaire Oven Seal
10SHIELD-INSULATION
11WCI 5303209518
12WCI 5303280308
13WCI 5303269859
14INSULATION-OVEN DOOR
15SEAL-ROPE, 0.25 DIA
