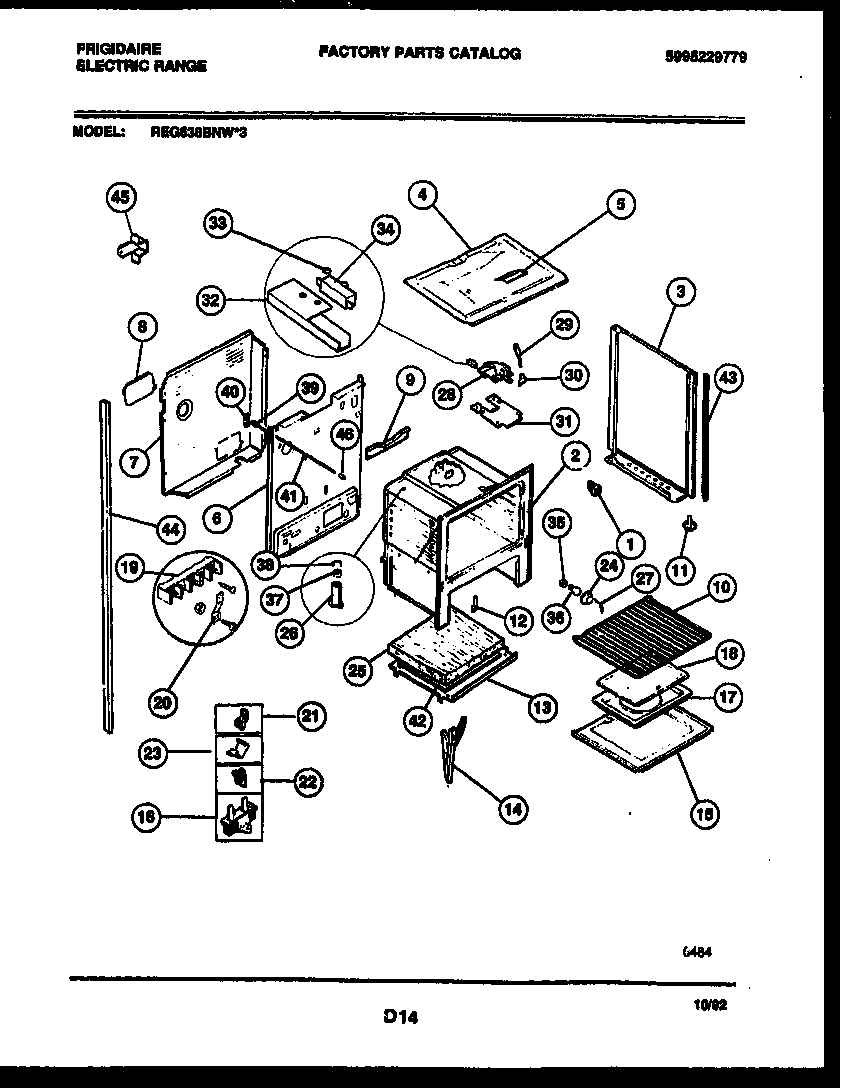

REG638BNL3 10 – LOWER BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3A	WCI 5303269543
3	WCI 5303269545
4	WCI 5303271658
5	WCI 08067757
6	WCI 3203032
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 5303051385
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27C	3131903 Frigidaire Door/Drawer Bumper
27A	INSULATION, OVEN WRAPPER
27	RETAINER-GLASS
27B	WCI 19100230001
28	WCI 5303015361
29	WCI 5303131357
30	WCI 3203218
30A	WCI 08013188
31	SHIELD-LATCH (NON-ILLUSTRATED)
32	SHIELD-LATCH
33	FSTNR-PUSH ON
34	WCI 08067781
35	316116400 Frigidaire Oven Light Socket
36	316538904 Frigidaire Oven Lamp Light
37	WCI 08067810
38	WCI 08010606
39	SWITCH-OVEN LITE DOOR
40	WCI 5303131289
41	WCI 5303269501
42	WCI 3200848
42A	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
42B	FASTENER-EDGE MTG (NOT ILLUSTRATED)
43	TRIM – VERTICAL B/S (2)
44B	ANTI-TIP KIT (NOT ILLUSTRATED)
44A	TUBE-POST LH
44	WCI 5303208642
45C	STUD SPACER (2) (NON-ILLUSTRATED)
45B	INSULATION, OVEN TOP
45A	INSULATION OVEN BACK (NON-ILLUSTRATED)
45D	3203550 Frigidaire Oven Plug
45	WCI 3203582
46	COVER-LIGHT/SWITCH ROD
