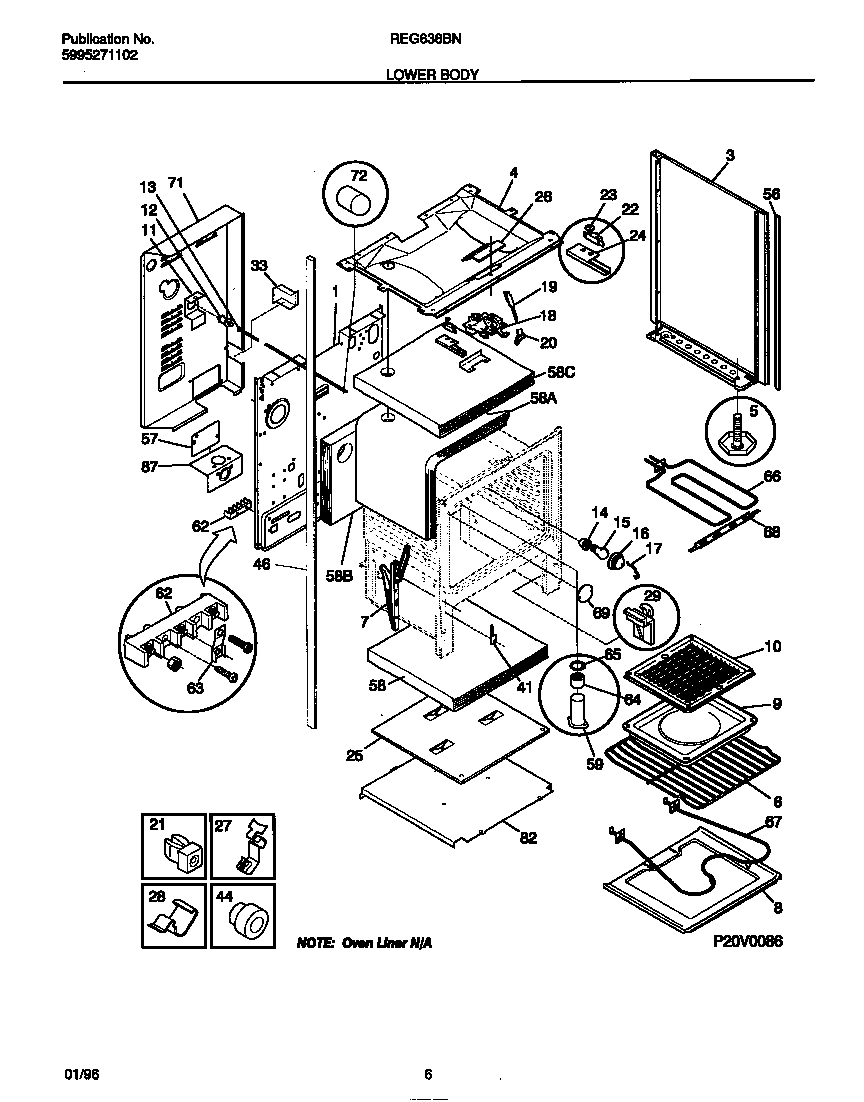

REG638BNL4 04 – LOWER BODYadmin2025-04-26T08:46:54+00:00REG638BNL4 04 – LOWER BODY
Products
| Position | Product |
|---|
| *11324 | WCI 3201772 |
| *11323 | 3203550 Frigidaire Oven Plug |
| 1 | WCI 316029405 |
| 3 | WCI 316081007 |
| 3 | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 3 | WCI 316081006 |
| 4 | WCI 5303271658 |
| 5B | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5A | SCREW-LEVELING |
| 5C | ANTI-TIP KIT (NOT ILLUSTRATED) |
| 6 | 316067902 Frigidaire Oven Rack |
| 7 | WCI 316007002 |
| 8 | PANEL-OVEN BOTTOM |
| 9 | PAN-BROILER |
| 10 | WCI 5303131356 |
| 12 | WCI 316027702 |
| 13 | WCI 316026800 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | RETAINER-GLASS |
| 18A | WCI 5303015361 |
| 18B | SHIELD-LATCH (NON-ILLUSTRATED) |
| 19 | WCI 5303131357 |
| 20A | WCI 3203218 |
| 20B | WCI 08013188 |
| 21 | SPACER-BODYSIDE, (8) |
| 22A | WCI 08067781 |
| 22B | STUD SPACER (2) (NON-ILLUSTRATED) |
| 23 | FSTNR-PUSH ON |
| 24 | SHIELD-LATCH |
| 25 | WCI 3200848 |
| 26 | WCI 08067757 |
| 27 | WCI 08067754 |
| 28 | WCI 3051367 |
| 29 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 33 | WCI 3203582 |
| 41 | WCI 3131570 |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 46A | WCI 5303208642 |
| 46B | TUBE-POST LH |
| 55 | COVER-FLUE |
| 56 | TRIM - VERTICAL B/S (2) |
| 57 | COVER-ACCESS |
| 58 | INSULATION, OVEN TOP |
| 58 | WCI 316054200 |
| 58 | INSULATION, OVEN WRAPPER |
| 58 | 316403803 Frigidaire Insulation |
| 59 | WCI 3051344 |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 63 | PLATE=GROUND STRAP |
| 64 | WCI 08067810 |
| 65 | WCI 08010606 |
| 66 | 5303051140 Frigidaire Broil Element |
| 67 | 316075103 Frigidaire Oven Bake Element |
| 68 | 316203400 Frigidaire Oven Support |
| 71 | SHIELD-REAR WALL, LOWER |
| 72 | COVER-LIGHT/SWITCH ROD |
| 82 | SHIELD, OVEN BOTTOM |
| 87 | WCI 5303206618 |
