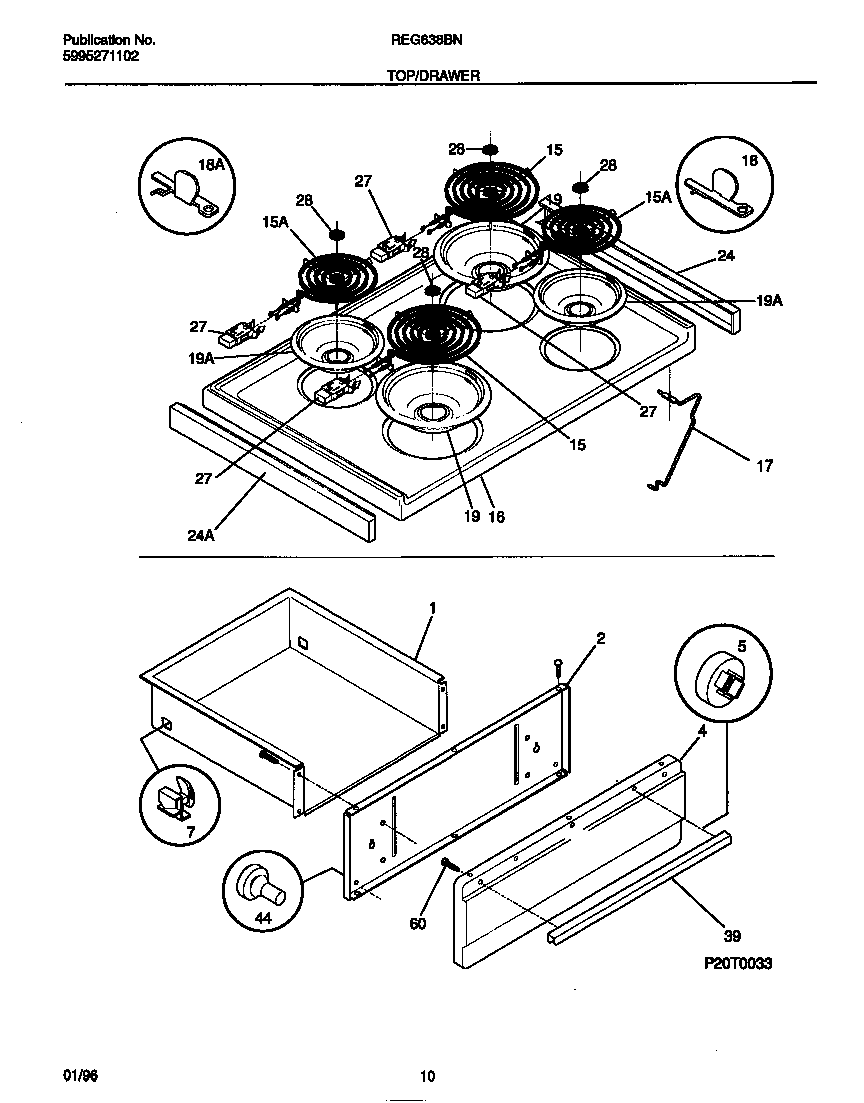

REG638BNL4 06 – TOP/DRAWER

Products

Position	Product
*11331	WCI 3012765
1	DRAWER-UTILITY
2	SHIELD-PNL
4B	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4A	WCI 316056207
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 3013512
17	ROD-MAIN SUPPORT (2)
18	BRACKET-HINGE,MAIN TOP RH
18	BRACKET-HINGE,MAIN TOP LH
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
24	WCI 3051355
24	WCI 3051354
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	WCI 5308067828
39	HANDLE
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
