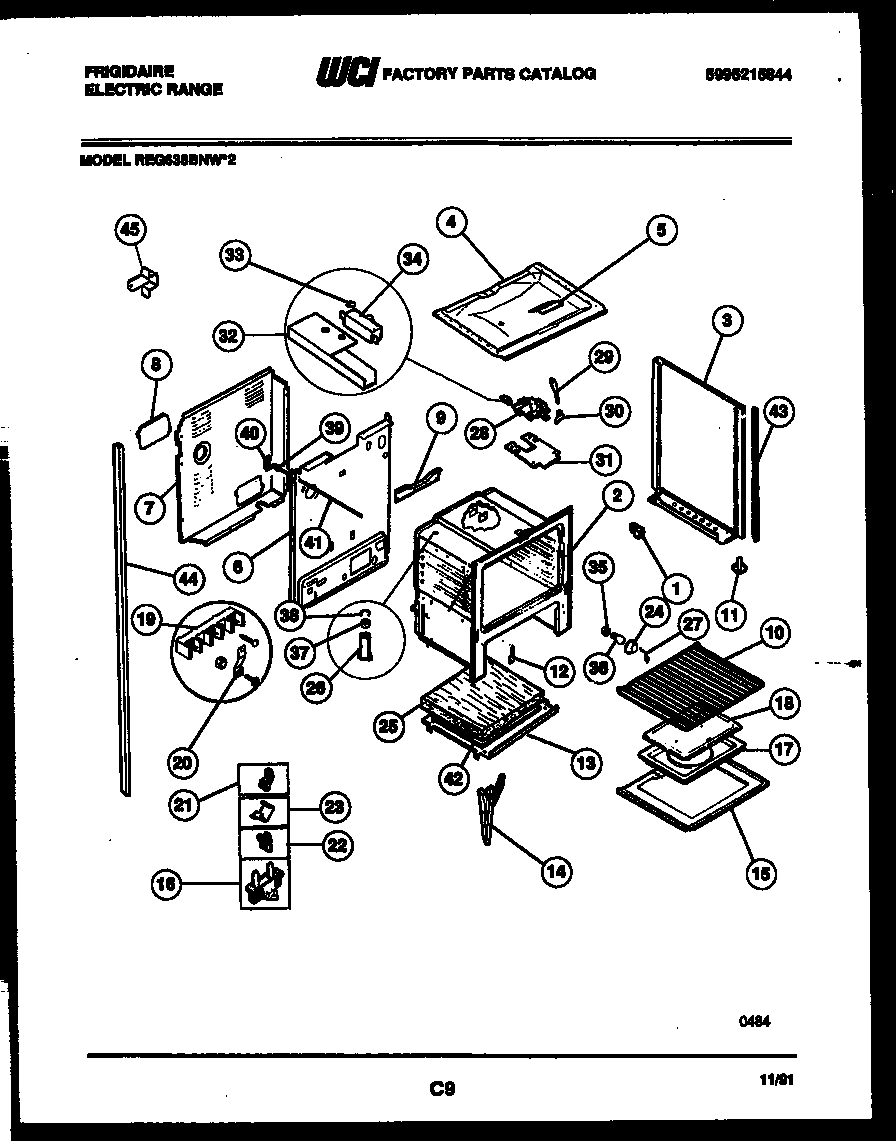

REG638BNW2 10 – LOWER BODY PARTS

Products

Position	Product
*56248	INSULATION, OVEN TOP
*56248	STUD SPACER (2) (NON-ILLUSTRATED)
*56248	3203550 Frigidaire Oven Plug
*56248	INSULATION OVEN BACK (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	PNL-B/S-LH-WHITE
3A	PNL-B/S-RH-WHITE
4	WCI 5303271658
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 5303051385
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27B	WCI 19100230001
27A	INSULATION, OVEN WRAPPER
27C	3131903 Frigidaire Door/Drawer Bumper
27	RETAINER-GLASS
28	WCI 5303015361
29	WCI 5303131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	WCI 08067781
35	316116400 Frigidaire Oven Light Socket
36	316538904 Frigidaire Oven Lamp Light
37	WCI 08067810
38	WCI 08010606
39	SWITCH-OVEN LITE DOOR
40	WCI 5303131289
41	WCI 5303209316
42A	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
42	WCI 3200848
42B	FASTENER-EDGE MTG (NOT ILLUSTRATED)
43	TRIM – VERTICAL B/S (2)
44	WCI 5303208642
44A	TUBE-POST LH
44B	ANTI-TIP KIT (NOT ILLUSTRATED)
45	WCI 3203582
