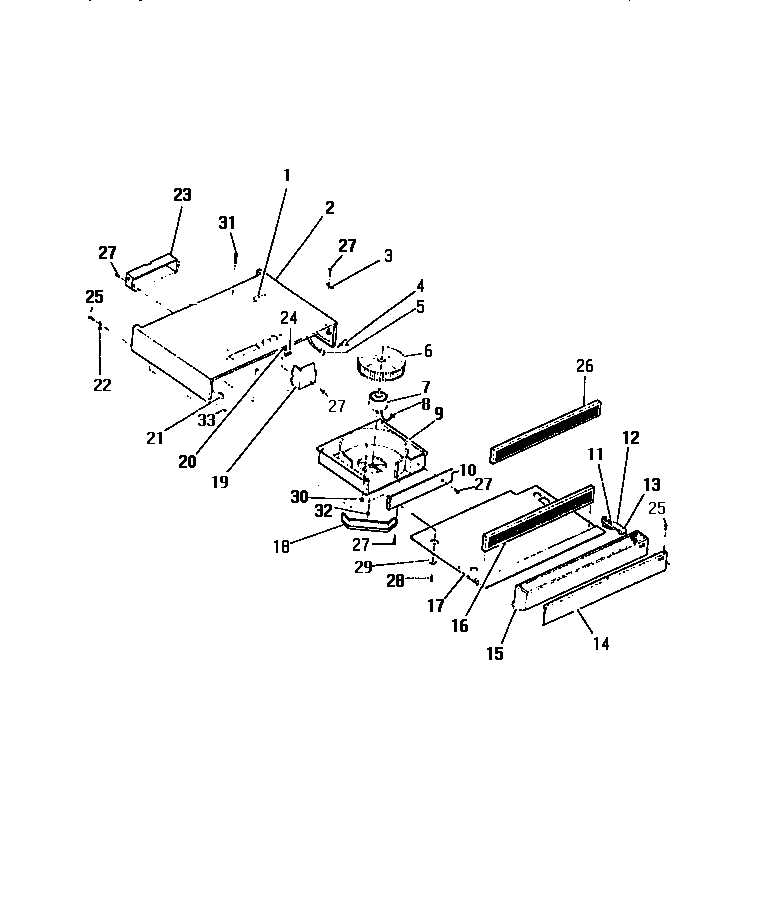

REG638MCH7 13 – CONVERTIBLE EYE-LEVEL VENT HOODS

Products

Position	Product
1	BUSHING, WIRE (2)
2A	HOUSING, ALMOND
2	HOUSING, BLACK
3	WCI 8013836
4	SWITCH ON-OFF (INCL. MOUNTING NUTS)
5	HARNESS TO MOTOR
6	WHEEL-BLOWER (INCL. SET SCREW)
7	WCI 8013839
8	WCI 8013845
9	WCI 8013838
10	WCI 8013841
11	WCI 8013825
12	WCI 8013824
13	WCI 8013822
14	WCI 8013821
15	WCI 8013823
16	WCI 8013826
17	WCI 8013829
18	WCI 8013837
19	WCI 8013830
20	HARNESS TO RANGE
21	WCI 8013828
22	RETAINER TO PRODUCT (2)
23	WCI 8013833
24	WCI 8013846
