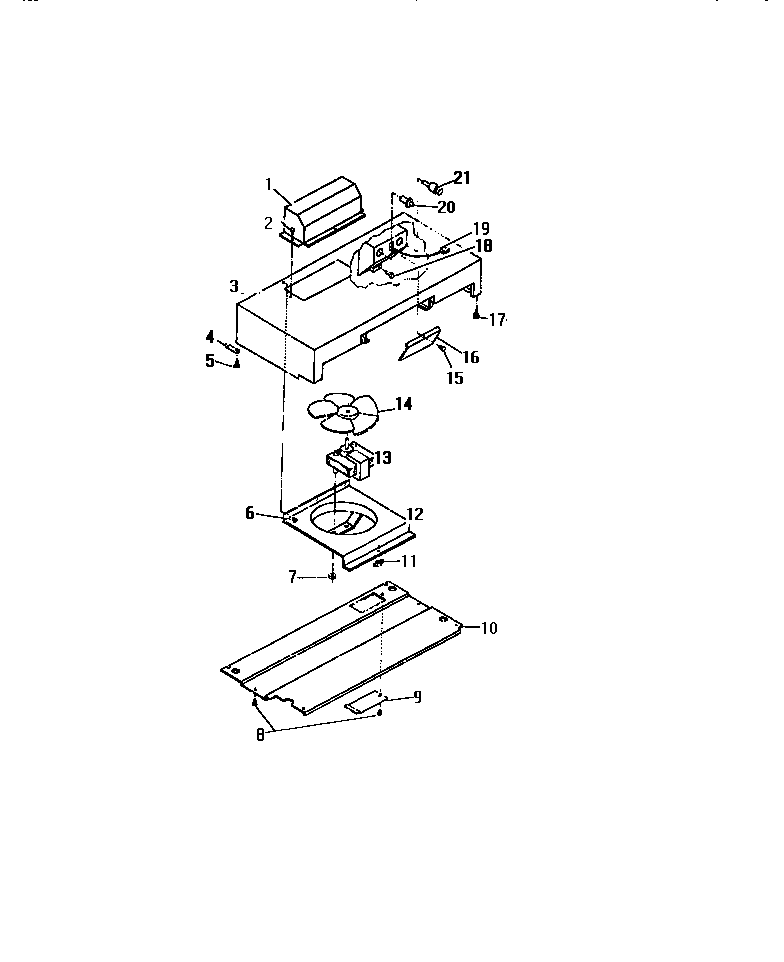

REG638ML5 12 – VENT HOOD DUCTED AND DUCTLESS ASSEM

Products

PositionProduct
1DAMPER (HV-30M)
2SCREW (2) (HV-30M)
3HOUSING ASSEMBLY (INCL ROLLERS) (HV-30M)
3HOUSING ASSEMBLY (INCL. ROLLERS) (HF-30M)
4BRACKET (2)
7WCI 6010635
9WCI 8010627
10WCI 8010628
11NUT, WING (HV-30M)
12BRACKET (HV-30M)
12BRACKET (HF-30M)
13MOTOR (HV-30M)
13MOTOR (HF-30M)
14FAN (HV-30M)
14FAN (HF-30M)
15SCREW (2)
16WCI 8010629
17SCREW (2)
18WCI 8010631
19HARNESS, INCL. PLUG
20WCI 8010633
21FUSE, 10 AMP SPECIAL (INCL. CAP)
