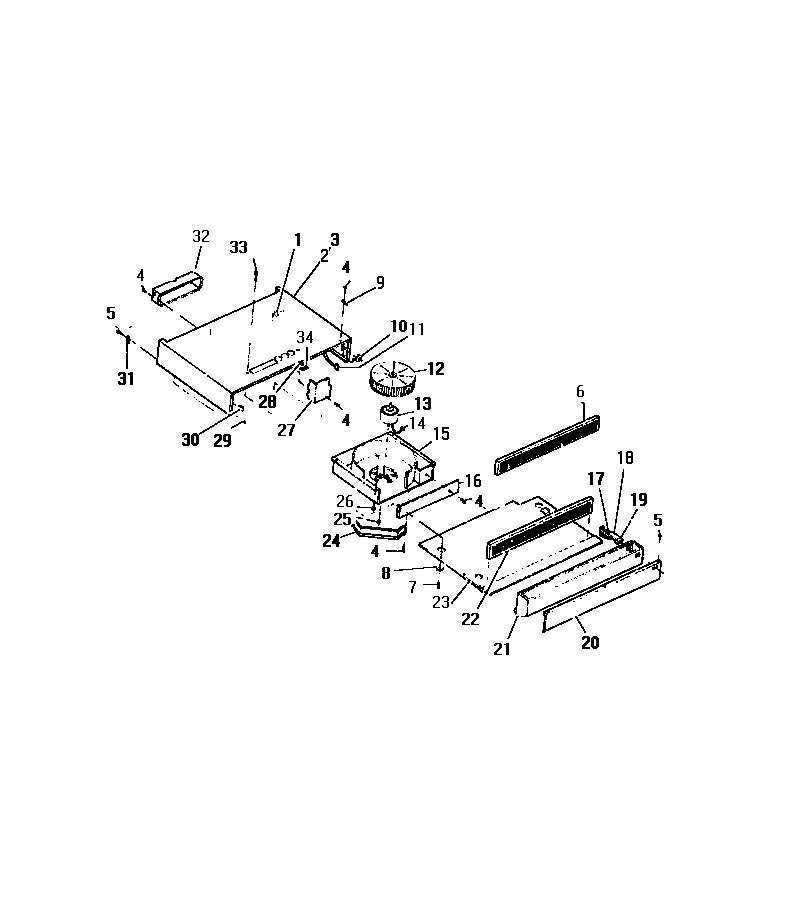

REG638MW5 13 – CONVERTIBLE EYE-LEVEL VENT HOODS

Products

Position	Product
1	BUSHING, WIRE (2)
9	WCI 8013836
10	SWITCH ON-OFF (INCL. MOUNTING NUTS)
11	HARNESS TO MOTOR
12	WHEEL-BLOWER (INCL. SET SCREW)
13	WCI 8013839
14	WCI 8013845
15	WCI 8013838
16	WCI 8013841
17	WCI 8013825
18	WCI 8013824
19	WCI 8013822
20	WCI 8013821
21	WCI 8013823
22	WCI 8013826
23	WCI 8013829
24	WCI 8013837
27	WCI 8013830
28	HARNESS TO RANGE
30	WCI 8013828
31	RETAINER TO PRODUCT (2)
32	WCI 8013833
34	WCI 8013846
