REG638MW7 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

REG638MW7 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Written by

in

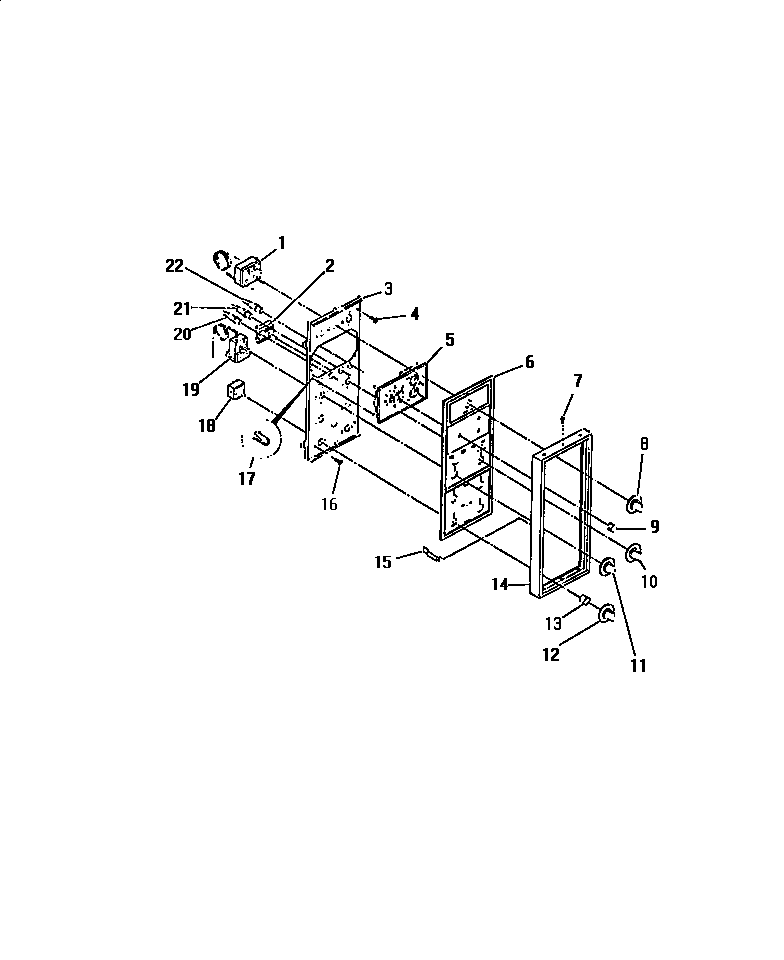

REG638MW7 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Products

PositionProduct
1WCI 8011709
2WCI 8010416
3WCI 8014778
4WCI 8011679
5COOKMASTER AND TIME SIGNAL
6GLASS, ESCUTCHEON
7SCREW (2)
8WCI 8011717
9WCI 8010404
10WCI 8010403
11WCI 8014093
12KNOB, SURFACE UNIT (4)
13BUSHING (2)
14WCI 8011716
15WCI 8011715
16WCI 8011710
17NUT (4)
18WCI 8010418
19WCI 8010417
20LIGHT, UPPER AND LOWER OVEN PILOT, AMBER
21LIGHT, LOCK PILOT, RED
22LIGHT, CLEAN PILOT, AMBER
