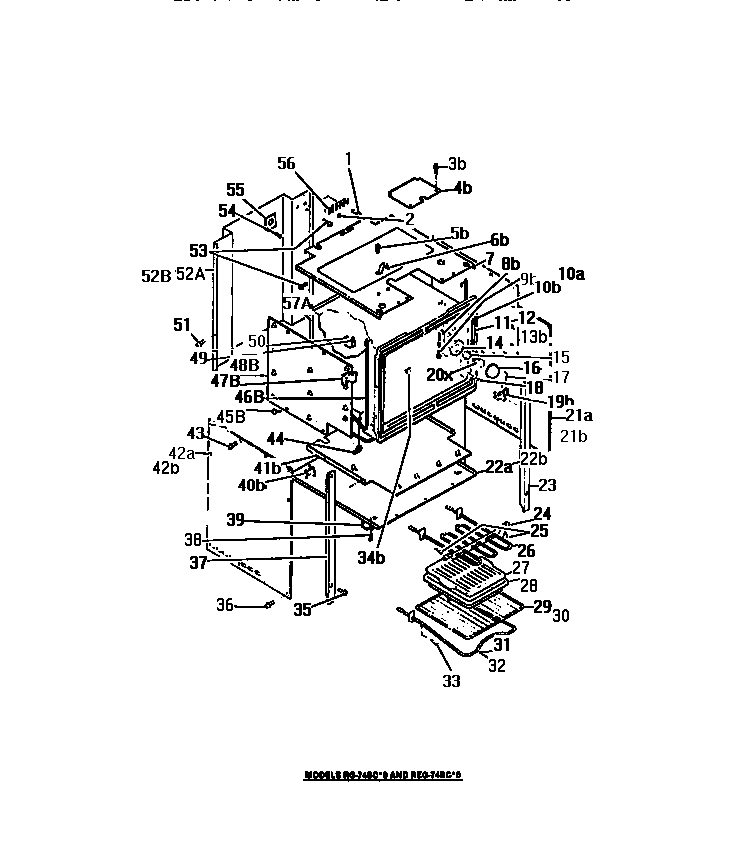

REG74BCB0 09 – OVEN LINER, HEATING ELEMENTS, PANEL

REG74BCB0 09 – OVEN LINER, HEATING ELEMENTS, PANEL

Written by

in

REG74BCB0 09 – OVEN LINER, HEATING ELEMENTS, PANEL

Products

Position	Product
1	SCREWS (2)
2	WCI 8003148
4B	WCI 8003367
6B	WCI 8003369
7	WCI 8008835
8B	WCI 8012252
9B	SCREWS (2)
10B	WCI 8012238
11	WCI 8003444
12	WCI 8003445
14	WCI 8011088
15	WCI 8011085
16	WCI 8011086
17	WCI 8011087
22B	WCI 8008837
24	WCI 8002857
26	WCI 8003346
27	WCI 8005314
28	WCI 8005315
29	WCI 8003436
30	WCI 8003437
31	WCI 8003347
32	WCI 8008245
34B	WCI 8003144
35	WCI 8003166
37	WCI 8003440
39	WCI 8003360
40B	SPACERS
41B	WCI 8003354
42B	WCI 8008838
44	WCI 8012212
46B	WCI 8006832
47B	WCI 8009017
48B	WCI 8003351
49	SCREW
50	WCI 8002854
52B	WCI 8008836
53	SCREWS (2)
54	SCREW, GROUND WIRE
55	WCI 8004952
56	BLOCK
