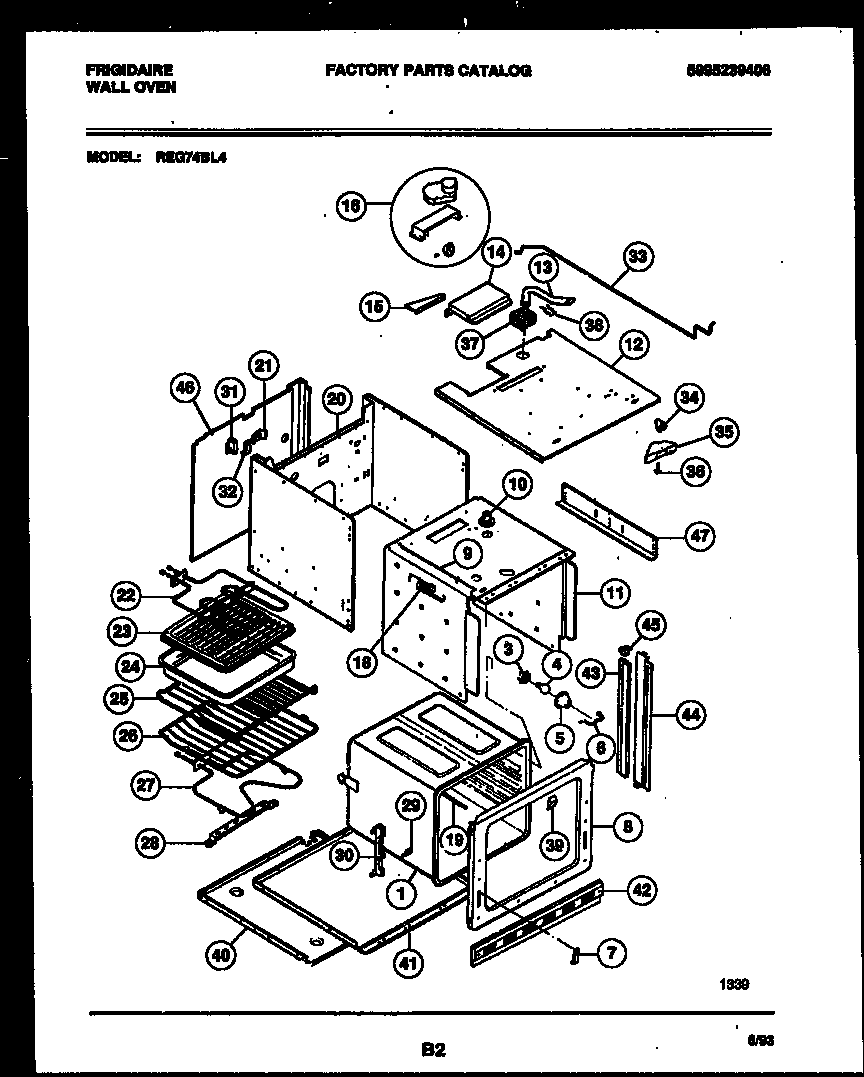

REG74BL4 04 – BODY PARTS

Products

Position	Product
*79595	WCI 19100270003
1	WCI 5303299862
3	SOCKET-LIGHT/LAMP, OVEN
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 5303299384
9	WCI 3202077
10	TUBE-OVEN VENT
11	WCI 5303299270
12	WCI 3016249
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303269766
18	WCI 3204114
19	316217002 Frigidaire Oven Temperature Probe
20	WCI 3016275
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	WCI 5303286735
24	WCI 5303286736
25	WCI 5303299366
26	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
29	WCI 3201632
30	WCI 3201631
31	SWITCH – OVEN LIGHT
32	WCI 3202384
33	WCI 3016241
34	LATCH-DOOR
35	WCI 3019069
36	AXLE – HINGE (2)
37	WCI 3016302
38	Clip,insulator
39	PLUG BUTTON (NON-ILLUSTRATED)
40	WCI 3016277
41	SHIELD-INSUL BASE
42	WCI 5303299856
43A	WCI 3016280
43	WCI 3016279
44	WCI 5303276673
45A	WCI 3202143
45	WCI 3202142
45C	INSULATION – BACK (NON-ILLUSTRATED)
45B	INSULATION (NON-ILLUSTRATED)
46	WCI 3016314
47	SUPPORT-HEIGHT ADJUSTMENT (2)
