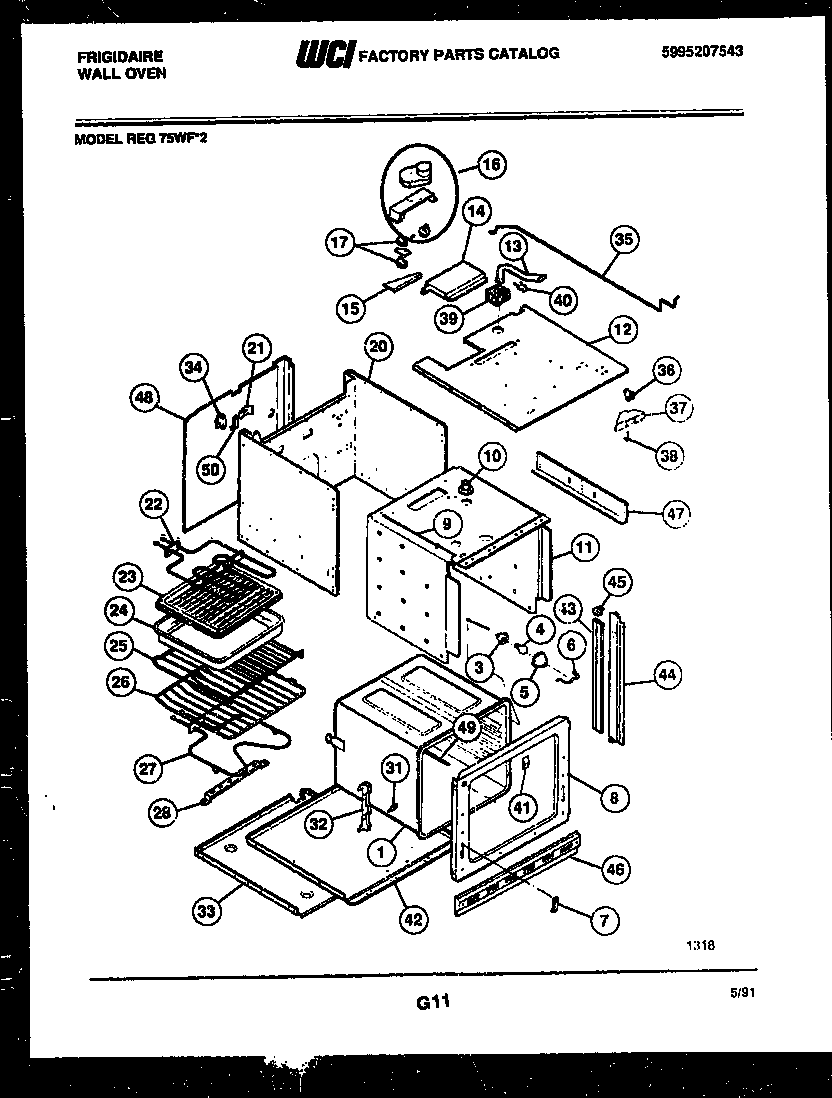

REG75WF2 04 – BODY PARTS

Products

Position	Product
*94870	WCI 3019069
*94871	WCI 1910270003
1	LINER – OVEN
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3202076
9	WCI 3202077
10	TUBE-OVEN VENT
11	WCI 3016272
12	WCI 3016249
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303269766
17	WCI 5303273247
17	WCI 5303273248
20	WCI 3016275
21	WCI 3016281
22	WCI 45303016247
23	GRILLE, BROILER
24	WCI 3205539
25	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
31	WCI 3201632
32	WCI 3201631
33	WCI 3016277
34	SWITCH-OVEN LIGHT
35	WCI 3016241
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE – HINGE (2)
39	WCI 3016302
40	Clip,insulator
41	WCI 3202082
42	SHIELD-INSUL BASE
43	WCI 3016279
43A	WCI 3016280
44	WCI 3202633
45A	WCI 3202632
45	WCI 3202631
46	WCI 3202627
47A	INSULATION-WRAP
47	SUPPORT-HEIGHT ADJUSTMENT (2)
47B	INSULATION – BACK (NON-ILLUSTRATED)
48	WCI 3016314
49	316217002 Frigidaire Oven Temperature Probe
50	WCI 3202384
