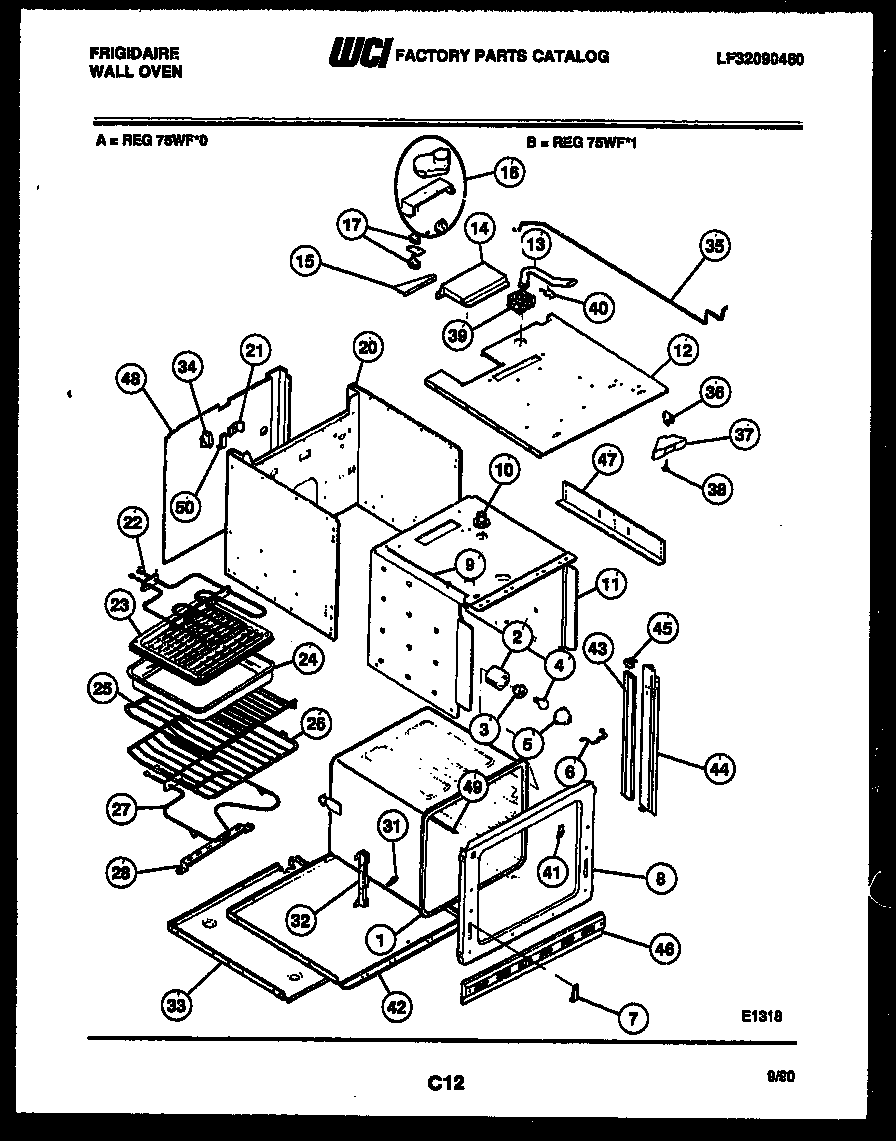

REG75WFB1 04 – BODY PARTS

Products

Position	Product
*63246	WCI 3019069
1	LINER - OVEN
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WIRE, GLASS RETAINER
7	WCI 3019063
8	WCI 3202076
9	WCI 3202077
10	TUBE-OVEN VENT
11	WCI 3016272
12	WCI 3016249
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	LATCH - MOTOR
17	WCI 3202393
20	WCI 3016275
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	GRILLE, BROILER
24	WCI 3205539
25	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
31	WCI 3201632
32	WCI 3201631
33	WCI 3016277
34	SWITCH
35	WCI 3016241
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE - HINGE (2)
39	WCI 3016302
40	Clip,insulator
41	WCI 3202082
42	SHIELD-INSUL BASE
43	WCI 3016279
43A	WCI 3016280
44	WCI 3202633
45	WCI 3202631
45A	WCI 3202632
46	WCI 3202627
47C	WCI 5300009126
47B	INSULATION - BACK (NON-ILLUSTRATED)
47A	INSULATION-WRAP
47	SUPPORT-HEIGHT ADJUSTMENT (2)
48	WCI 3016314
49	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
50	WCI 3202384
