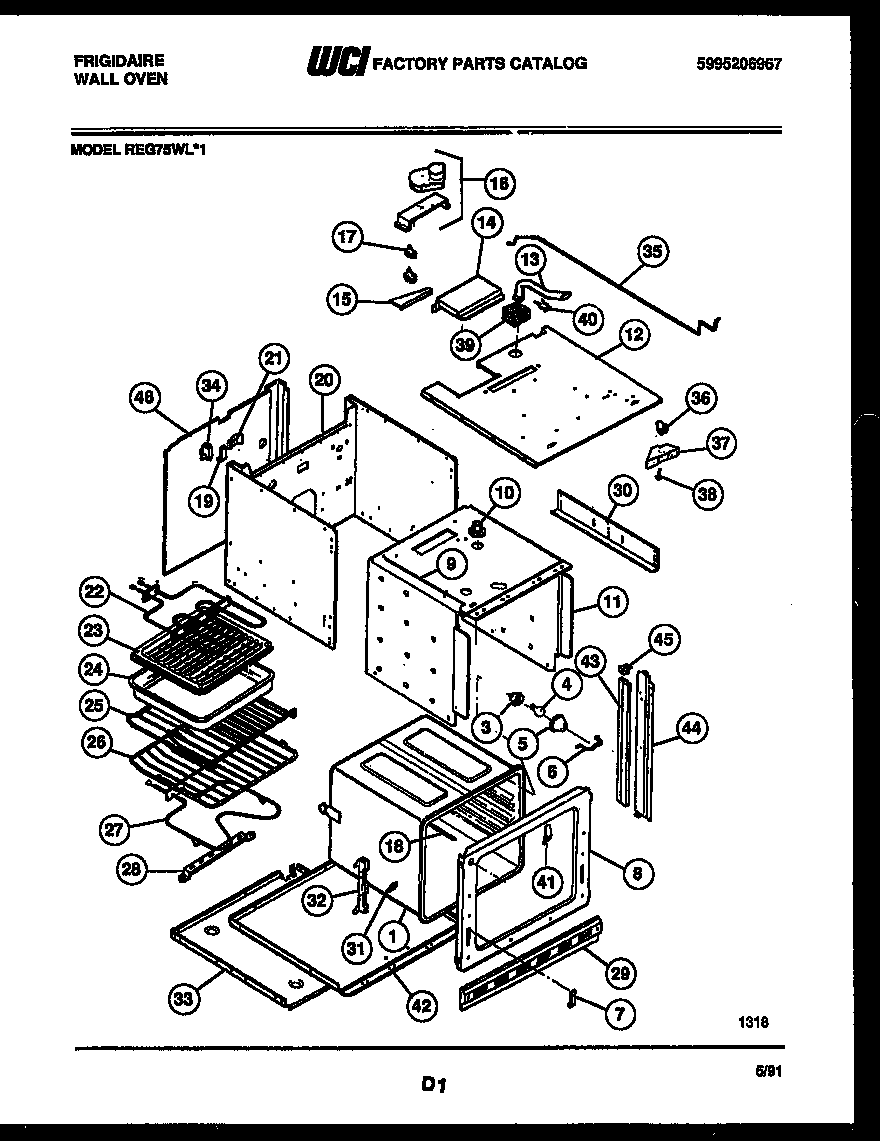

REG75WL1 04 – BODY PARTS

Products

Position	Product
*45112	WCI 191S018F318
*45112	PLUG BUTTON (NON-ILLUSTRATED)
*45112	INSULATION-WRAP
*45112	INSULATION – BACK (NON-ILLUSTRATED)
*45112	WCI 5300009126
*45107	WCI 3201807
*45107	TAPE-INNER DOOR 45“
*45107	Plug,button
1	WCI 3202635
1	LINER – OVEN
2	SPACER-HANDLE
3	316116400 Frigidaire Oven Light Socket
3	WCI 3205186
4	WCI 5303211148
4	316538904 Frigidaire Oven Lamp Light
5	SPACER-HANDLE MTG, (2)
5	5304524341 Frigidaire Lens
6	GLASS – BAFFLE (2)
6	WIRE, GLASS RETAINER
7	WCI 5303210005
7	WCI 3019063
8	WCI 3202076
8	WCI 5301167830
9	WCI 5303211340
9	WCI 3202077
10	TUBE-OVEN VENT
10	WCI 3206270
11	WCI 3016272
11	SPACER-GLASS
12	WCI 3016249
12	SCREW HANDLE
13	WCI 3016301
13	WCI 3016263
14	WCI 5303211362
14	WCI 3016296
15	WCI 5308003186
15	BRACKET-MOTOR MTG
16	WCI 5303018381
16	LATCH – MOTOR
17	WCI 5303210006
17	WCI 3202393
18	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
19	WCI 3202384
20	WCI 3016275
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	GRILLE, BROILER
24	WCI 3205539
25	318345216 Frigidaire Oven Rack
27	318255101 Frigidaire Oven Bake Element
28	WCI 3016248
29	WCI 3202627
30	SUPPORT-HEIGHT ADJUSTMENT (2)
31	WCI 3201632
32	WCI 3201631
33	WCI 3016277
34	SWITCH
35	WCI 3016241
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE – HINGE (2)
39	WCI 3016302
40	Clip,insulator
41	WCI 3202082
42	SHIELD-INSUL BASE
43	WCI 3016280
43	WCI 3016279
44	WCI 3202633
45	WCI 3202632
45	WCI 3202631
46	WCI 3016314
