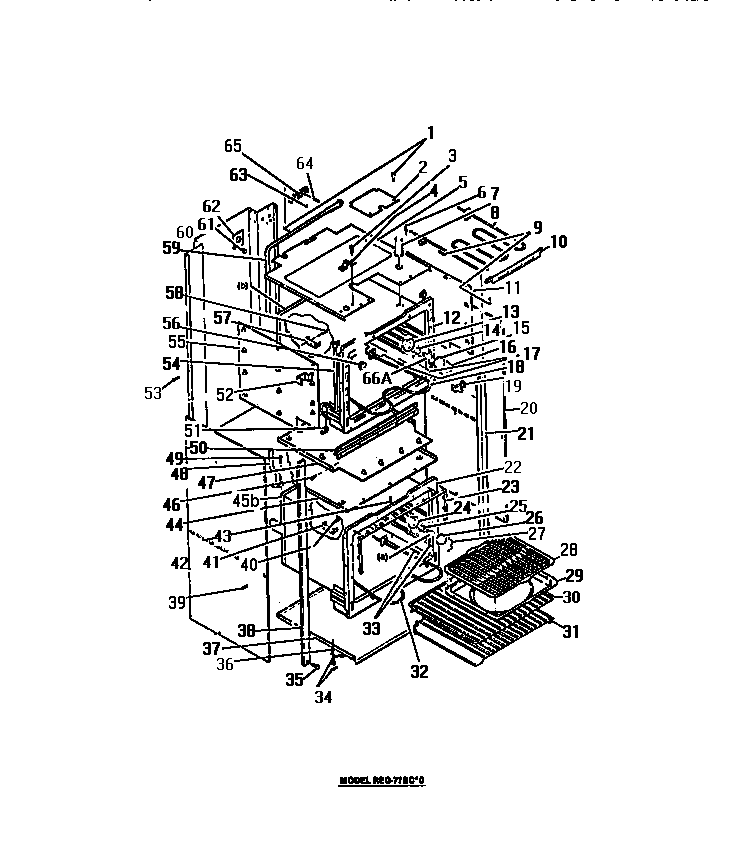

REG77BCB0 10 – OVEN LINER, HEATING ELEMENTS, PANEL

REG77BCB0 10 – OVEN LINER, HEATING ELEMENTS, PANEL

Written by

in

REG77BCB0 10 – OVEN LINER, HEATING ELEMENTS, PANEL

Products

Position	Product
2	WCI 8003367
4	WCI 8003369
5	WCI 8008835
6	SCREWS (2)
7	WCI 8012252
8	WCI 8003346
10	WCI 8002857
12	WCI 8012238
19	SPACERS
22	WCI 8012239
23	WCI 8012216
24	WCI 8011088
25	WCI 8011085
26	WCI 8011086
27	WCI 8011087
28	WCI 8005314
29	WCI 8005315
30	WCI 8003436
31	WCI 8003437
32	WCI 8003347
35	WCI 8003166
36	WCI 8003360
37	WCI 8008837
38	WCI 8003362
42	WCI 8008867
44	WCI 8003355
47	WCI 8003354
48	WCI 8003349
50	WCI 8003357
51	WCI 8012212
52	WCI 8009017
53	SCREWS (2)
54	WCI 8008832
55	WCI 8003351
56	WCI 8003144
57	WCI 8002854
58	SCREW
59	WCI 8003403
60	WCI 8008866
61	SCREW, GROUND WIRE
62	WCI 8004952
63	WCI 8003148
64	SCREWS (2)
65	BLOCK
