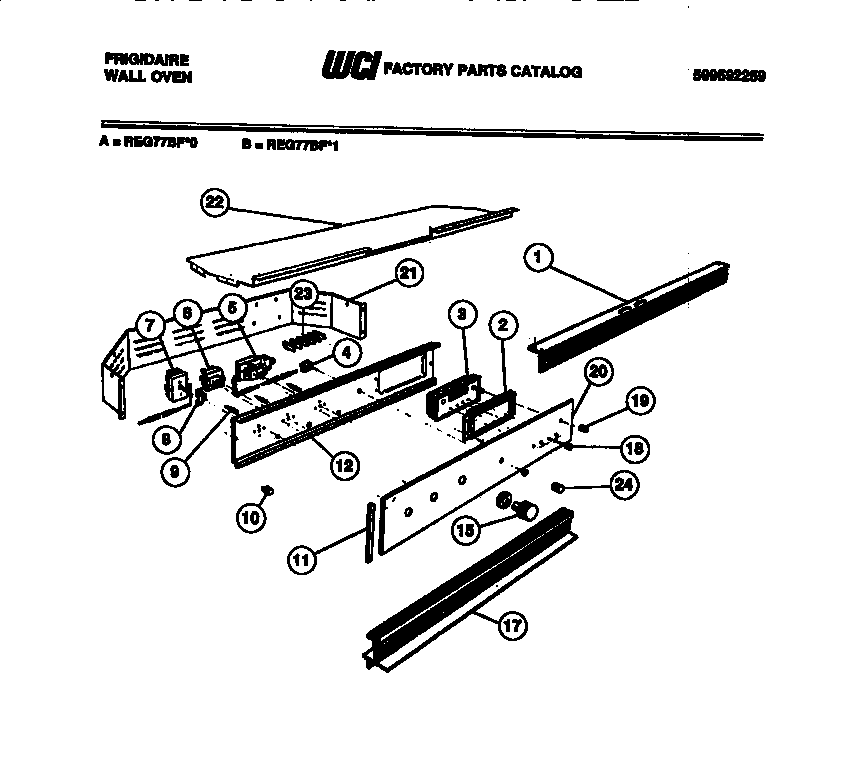

REG77BFB0 02 – CONTROL PANEL

REG77BFB0 02 – CONTROL PANEL

Written by

in

REG77BFB0 02 – CONTROL PANEL

Products

PositionProduct
1WCI 3202138
2WCI 3202088
3WCI 3202089
4WCI 3202150
5WCI 5303202090
6WCI 5308015771
7WCI 3202091
8BRACKET-THERMOSTAT
9LIGHT-IND. (UPPER OVEN)
9WCI 3016291
9LIGHT-IND-LOWER OVEN
10WCI 3202093
11TRIM-CONTROL PNL GLASS
12PLATE-INST MTG
15KNOB-SELECTOR & THERMOSTAT
17WCI 3202139
18BUTTON-CLOCK (4)
19WCI 3202137
20WCI 3202134
21WCI 3016250
22COVER – CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24WCI 3202135
