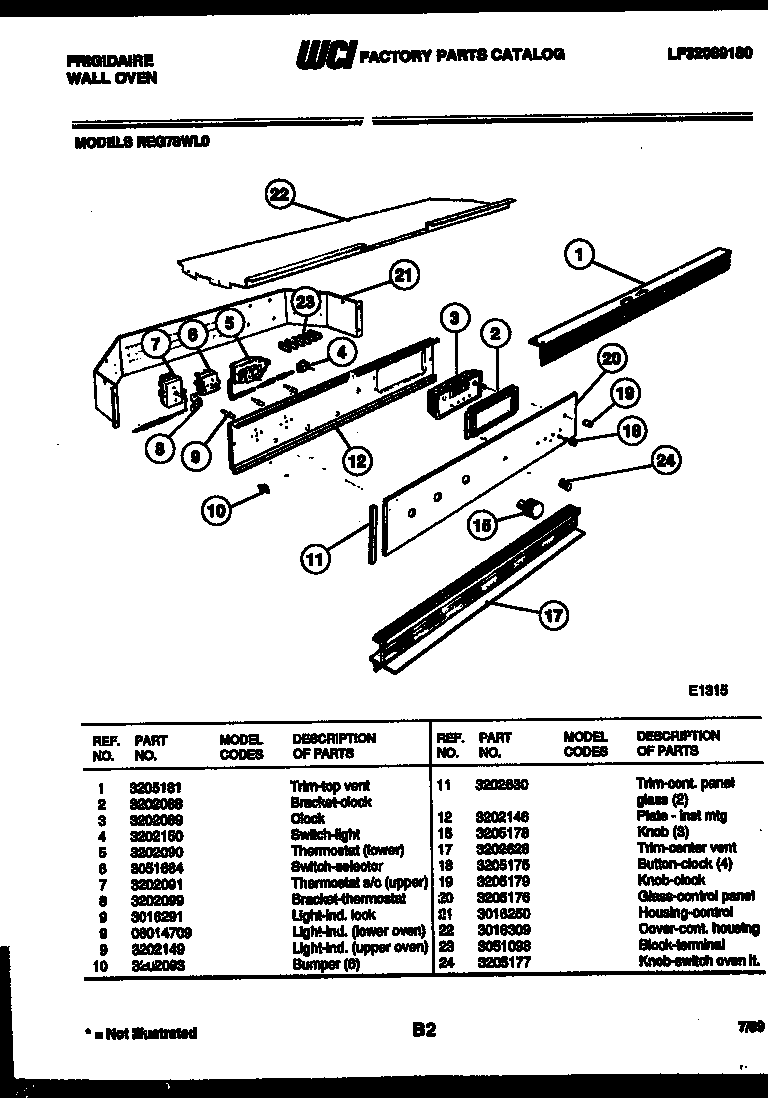

REG78WLB0 02 – CONTROL PANEL

REG78WLB0 02 – CONTROL PANEL

Written by

in

REG78WLB0 02 – CONTROL PANEL

Products

PositionProduct
1WCI 3205181
2WCI 3202088
3WCI 3202089
4WCI 3202150
5WCI 3202090
6SWITCH-SELECTOR
7WCI 3202091
8BRACKET-THERMOSTAT
9WCI 3016291
9LIGHT-IND. (UPPER OVEN)
9LIGHT-IND. (LOWER OVEN)
10WCI 3202093
11TRIM-CONT PANEL GLASS
12PLATE-INST MTG
15WCI 3205178
17WCI 3202628
18WCI 3205175
19WCI 3205179
20WCI 3205176
21WCI 3016250
22COVER – CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24WCI 3205177
