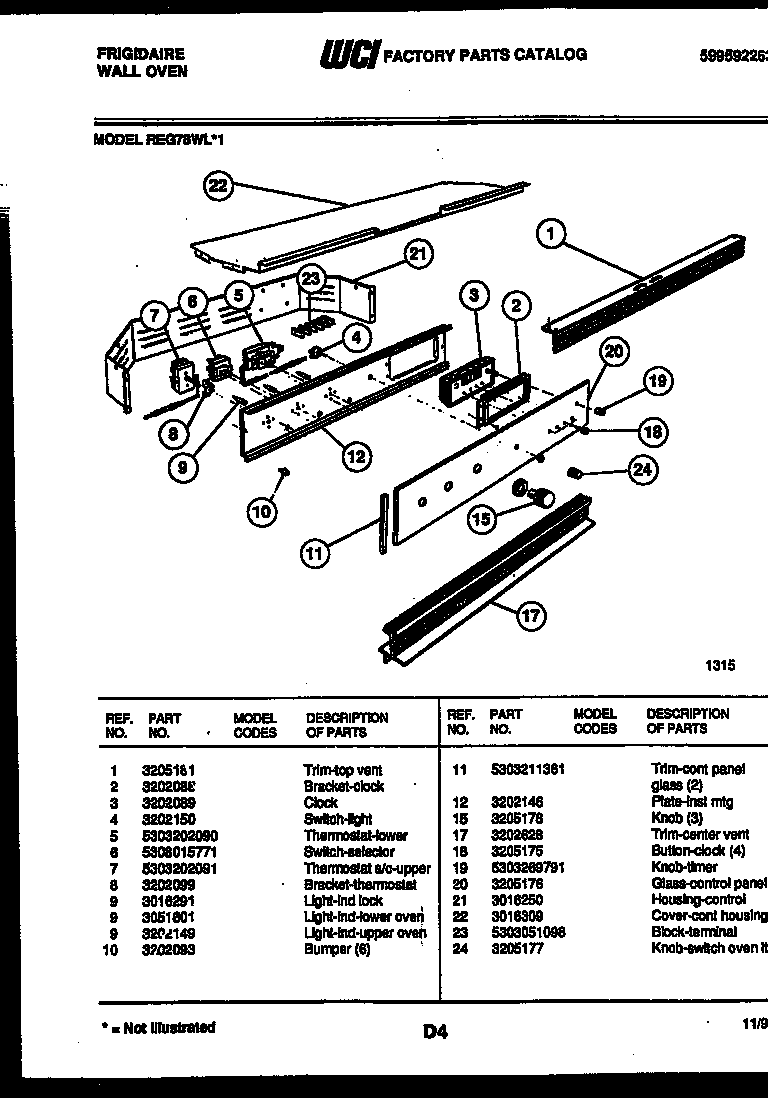

REG78WLB1 02 – CONTROL PANEL

REG78WLB1 02 – CONTROL PANEL

Written by

in

REG78WLB1 02 – CONTROL PANEL

Products

PositionProduct
1WCI 3205181
2WCI 3202088
3WCI 3202089
4WCI 3202150
5WCI 5303202090
6WCI 5308015771
7WCI 5303202091
8BRACKET-THERMOSTAT
9LIGHT-IND. (UPPER OVEN)
9WCI 3016291
9LIGHT-IND-LOWER OVEN
10WCI 3202093
11TRIM-CONT PANEL GLASS (2)
12PLATE-INST MTG
15WCI 3205178
17WCI 3202628
18WCI 3205175
19KNOB-TIMER
20WCI 3205176
21WCI 3016250
22COVER – CONT HOUSING
235304409888 Frigidaire Oven Terminal Block with Hardware
24WCI 3205177
