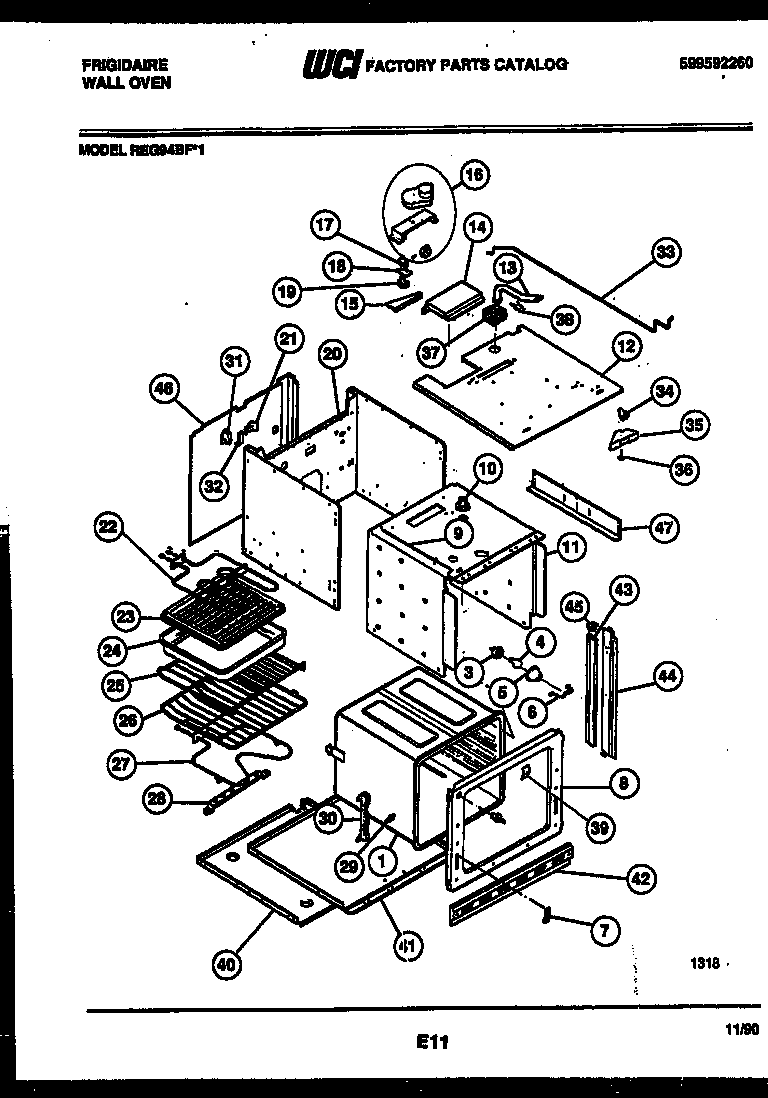

REG94BFB1 04 – BODY PARTS

Products

Position	Product
*38731	PLUG BUTTON (NON-ILLUSTRATED)
1	SWITCH
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	WCI 3016244
7	WCI 3019063
8	WCI 3202449
9	WCI 3202077
10	TUBE-OVEN VENT
11	WCI 3202445
12	WCI 3203747
13	WCI 3016301
14	WCI 3016296
15	BRACKET-MOTOR MTG
16	WCI 5303016242
17	WCI 3202114
18	WCI 3051861
19	SW-DOOR LATCH (2)
20	WCI 3202448
21	WCI 3016281
22	5303016247 Frigidaire Broil Element
23	WCI 5303017712
24	WCI 5303016973
25	WCI 3202443
26	WCI 3202442
27	318255101 Frigidaire Oven Bake Element
27A	WCI 191S018F283
28	WCI 3016248
29	WCI 3201632
30	WCI 3201631
31	SWITCH-OVEN LIGHT
32	WCI 3202384
33	WCI 3016241
34	LATCH-DOOR
35	WCI 3019069
36	AXLE – HINGE (2)
37	WCI 3016302
38	Clip,insulator
39	WCI 3202082
40	WCI 3202447
41	SHIELD-INSULATION
42	TRIM-BASE
43	WCI 3016280
44	WCI 3202303
45C	WCI 5300009126
45	WCI 3202143
45	WCI 3202142
45B	INSULATION-BACK
45A	INSULATION-WRAP
46	WCI 3202444
47	SUPPORT-HEIGHT ADJUSTMENT (2)
