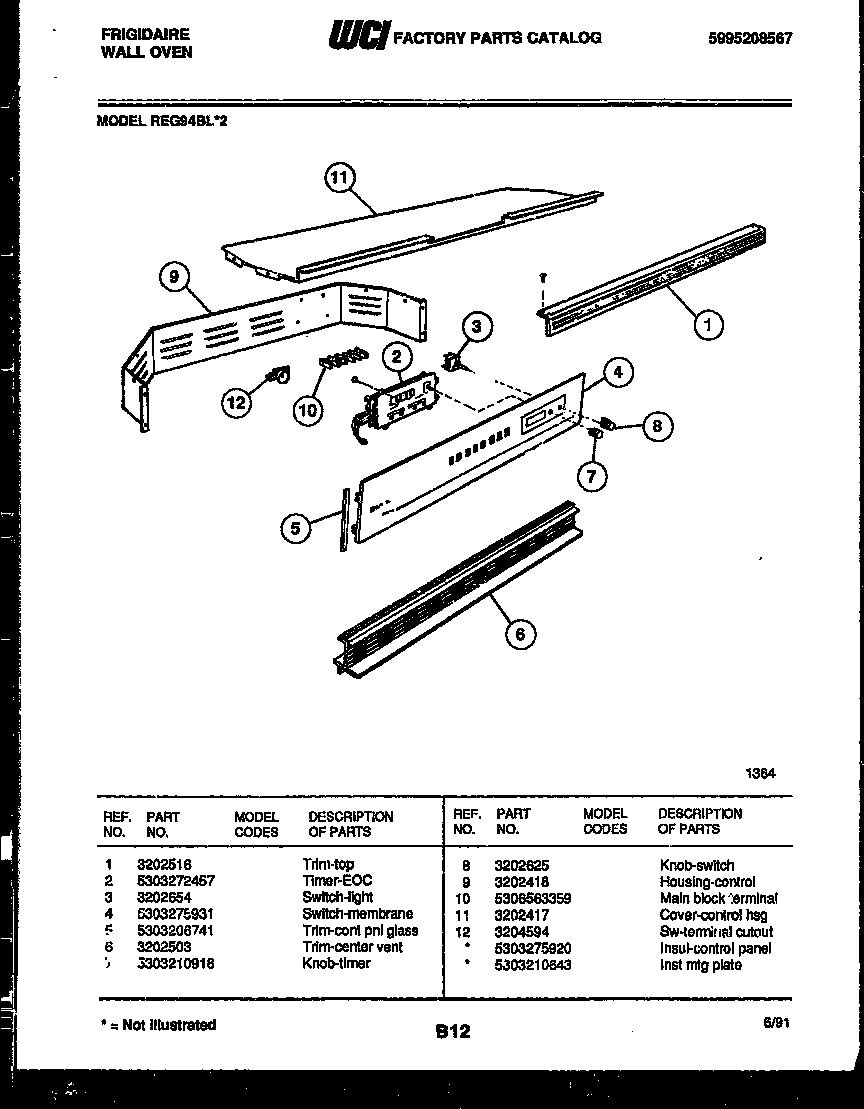

REG94BL2 02 – CONTROL PANEL

Written by

Products

Position	Product
*49170	INSUL-CONTROL PANEL
*49170	PLATE-SWITCH MTG.
1	TRIM-TOP
2	WCI 5303272457
3	SWITCH-LIGHT
4	SWITCH-MEMBRANE
5	WCI 5303206741
6	TRIM-CENTER VENT
7	KNOB – CLOCK-GRAY
8	KNOB-CLOCK
9	HOUSING-CONT
10	5304409888 Frigidaire Oven Terminal Block with Hardware
11	COVER-CONT HOUSING
12	WCI 3204594
