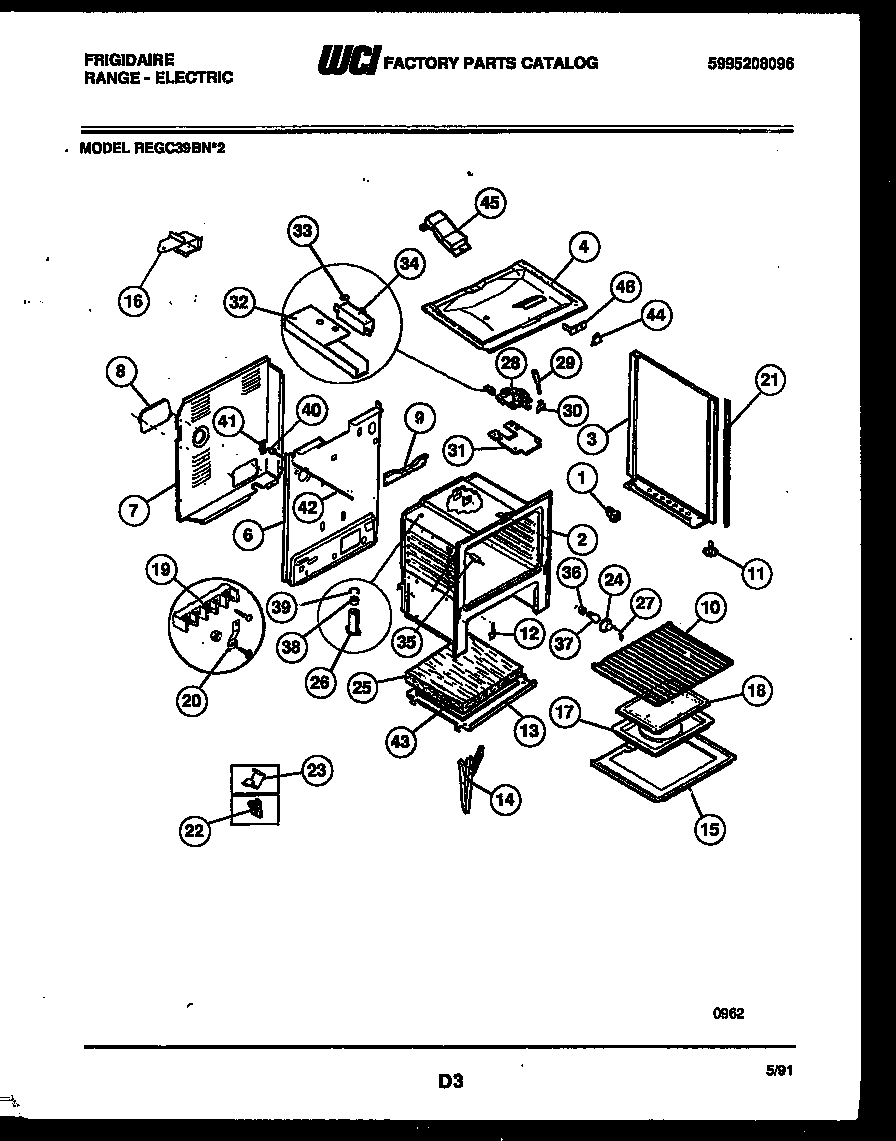

REGC39BNW2 03 – BODY PARTS

Products

Position	Product
*47202	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*47202	WCI 19100210123
*47202	3203550 Frigidaire Oven Plug
*47202	WCI 08067757
*47202	WCI 5303206618
*47202	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*47202	WCI 3131252
*47202	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	WCI 5303269544
3	WCI 5303269546
4	WCI 5303271658
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 3203582
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	TRIM – VERTICAL B/S (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	5303284616 Frigidaire Range Bulb Clip Thermostat
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	TRIM MAIN TOP LH
27A	INSULATION, OVEN WRAPPER
27C	3131903 Frigidaire Door/Drawer Bumper
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27	RETAINER-GLASS
27E	316205500 Frigidaire Oven Nut
27D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
28	WCI 5303015361
29	WCI 5303131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH (NON-ILLUSTRATED)
32	SHIELD-LATCH
33	FSTNR-PUSH ON
34	SWITCH-LATCH
35	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
43	WCI 3200848
43A	INSULATION, OVEN TOP
44	3205821 Frigidaire Clip
45	FLUE BOX
45A	WCI 3015337
46	WCI 3051242
46A	WCI 3051243
