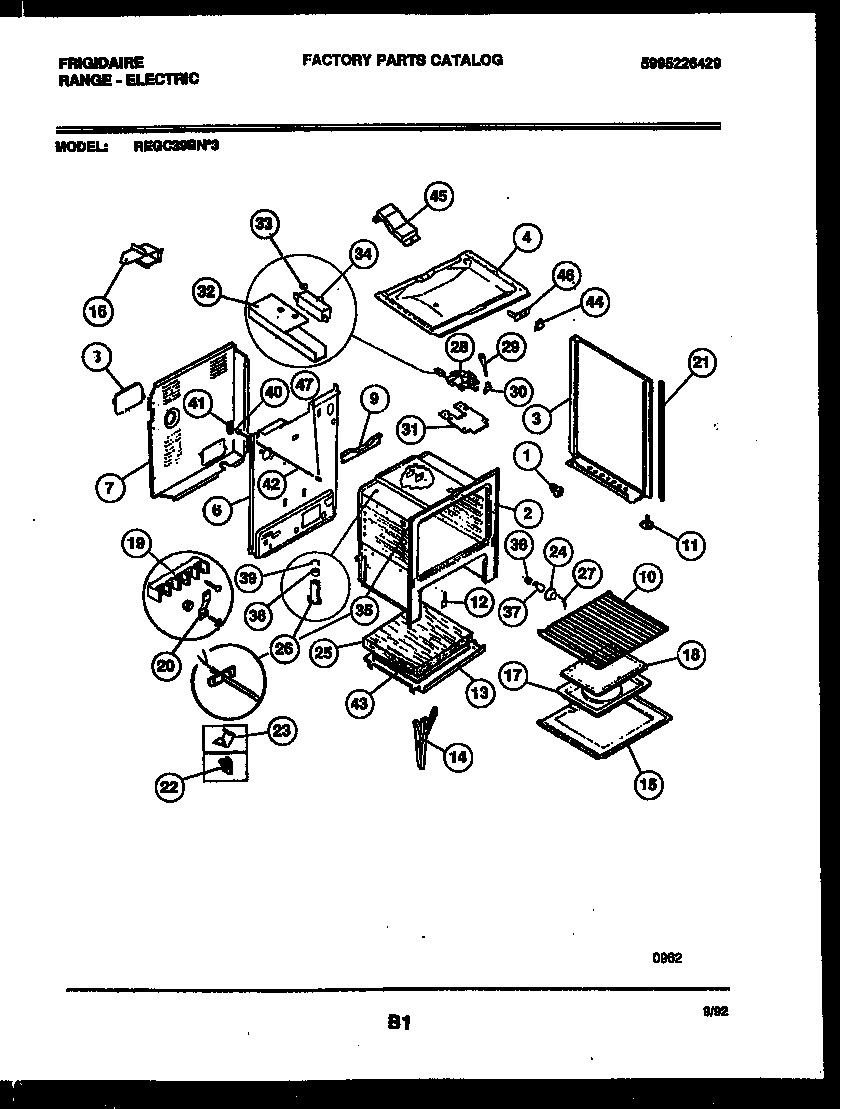

REGC39BNW3 03 – BODY PARTS

REGC39BNW3 03 – BODY PARTS

Written by

in

REGC39BNW3 03 – BODY PARTS

Products

PositionProduct
*67210WCI 19100210123
*67209FASTENER-EDGE MTG (NOT ILLUSTRATED)
*67210SHIELD-PNL
*67209SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*67209ANTI-TIP KIT (NOT ILLUSTRATED)
*672093203550 Frigidaire Oven Plug
*67209WCI 08067757
*67209WCI 5303206618
1SPACER-BODYSIDE, (8)
3WCI 5303269546
3AWCI 5303269544
4WCI 5303271658
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
16WCI 3203582
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
21TRIM – VERTICAL B/S (2)
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
235303284616 Frigidaire Range Bulb Clip Thermostat
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26TRIM MAIN TOP LH
27E316205500 Frigidaire Oven Nut
27RETAINER-GLASS
27AINSULATION, OVEN WRAPPER
27C3131903 Frigidaire Door/Drawer Bumper
27DSCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
27BINSULATION OVEN BACK (NON-ILLUSTRATED)
28WCI 5303015361
29WCI 5303131357
30WCI 3203218
30AWCI 08013188
31SHIELD-LATCH (NON-ILLUSTRATED)
32SHIELD-LATCH
33FSTNR-PUSH ON
34SWITCH-LATCH
355304497424 Frigidaire Oven Temperature Sensor Probe Kit
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39WCI 08010606
40SWITCH-OVEN LITE DOOR
41WCI 5303131289
42WCI 5303209316
43AINSULATION, OVEN TOP
43WCI 3200848
443205821 Frigidaire Clip
45FLUE BOX
45AWCI 3015337
46WCI 3051242
46AWCI 3051243
47COVER-LIGHT/SWITCH ROD
