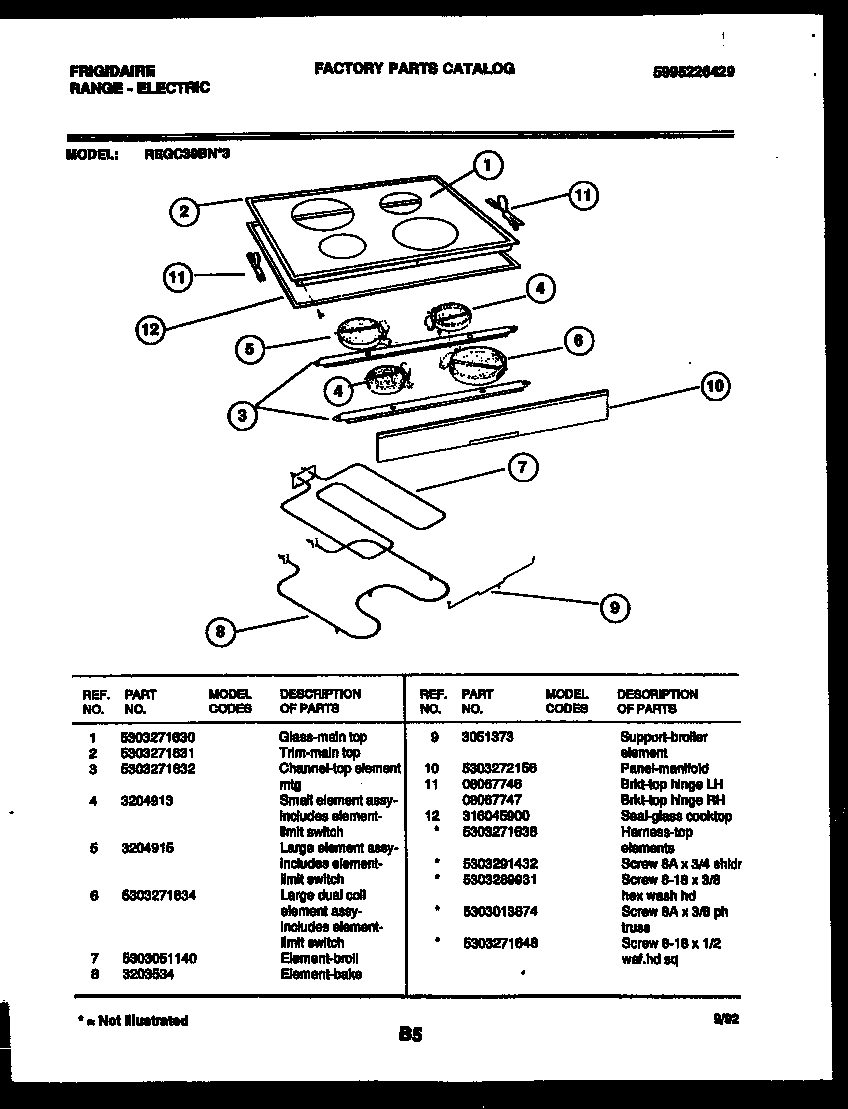

REGC39BNW3 06 – COOKTOP AND BROILER PARTS

REGC39BNW3 06 – COOKTOP AND BROILER PARTS

Written by

in

REGC39BNW3 06 – COOKTOP AND BROILER PARTS

Products

PositionProduct
*67213SCREW SW PNL. (7)
*672135303271648 Frigidaire Oven Screw
*67213WCI 5303271638
*67213WCI 5303291432
*67213131243700 Frigidaire Screw
1WCI 5303271630
2TRIM-MAIN TOP
3CHANNEL-TOP ELEMENT MTG
4SMALL ELEMENT ASSY-INCLUDES ELEMENT-LIMIT SWITCH
5318198834 Frigidaire Oven Element
6WCI 5303271634
75303051140 Frigidaire Broil Element
8316075103 Frigidaire Oven Bake Element
9316203400 Frigidaire Oven Support
10WCI 5303272156
11BRACKET-HINGE,MAIN TOP LH
11ABRACKET-HINGE,MAIN TOP RH
12SEAL-GLASS COOKTOP
