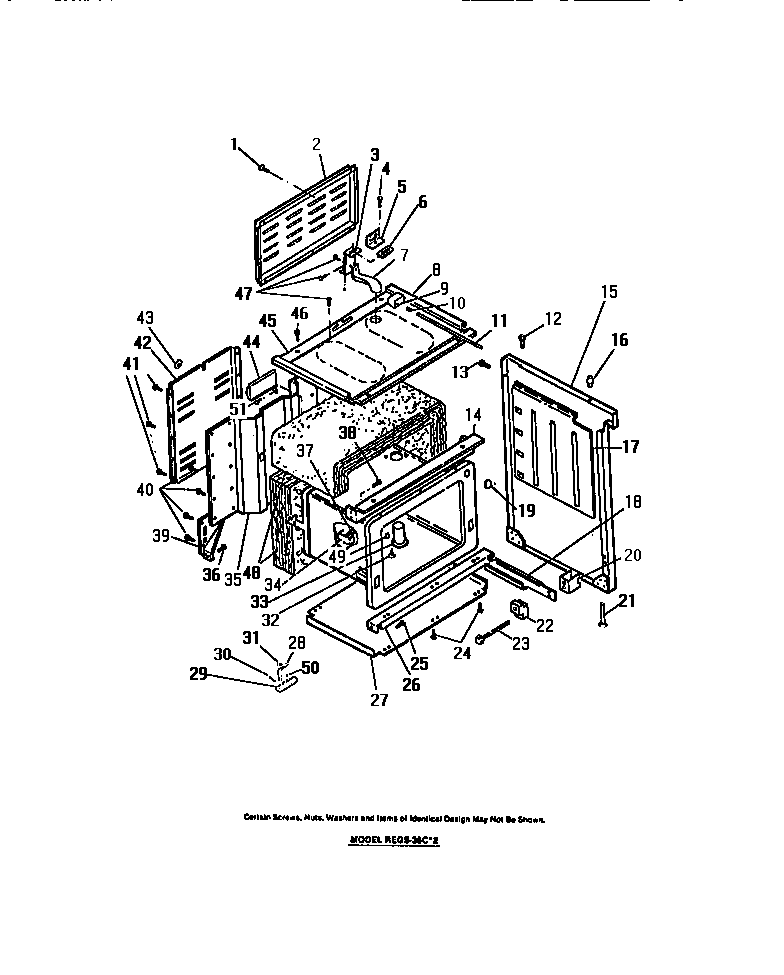

REGS36BCH2 16 – OVEN LINER, SIDE PANELS

Products

Position	Product
2	WCI 8012513
3	WCI 8014260
5	BRACKET, DOOR LATCH SWITCH
6	WCI 8014261
7	WCI 8014259
8	WCI 8014247
9	WCI 8003081
10	WCI 8007444
11	WCI 8007443
12	SCREWS (2)
14	WCI 8008324
15	PANEL, RH SIDE, WHEAT
15A	PANEL, LH SIDE, WHEAT
16	BUMPERS (4)
17	WCI 8012235
18A	RAIL, LH DRAWER
18	RAIL, RH DRAWER
19	WCI 8002852
20	SPACERS (2)
21	SCREWS LEVELING (4)
22	GUIDES (2)
23	SCREWS (2)
26	WCI 8002872
27	WCI 8015751
28	WCI 8003146
29	BLOCK
30	SCREWS (2)
31	SCREW, GROUND WIRE
32	SCREWS (2)
33	WCI 8012752
34	WCI 8002854
35	WCI 8015749
37	SCREW
39A	GUSSETS, LH
39	GUSSETS, RH
42	WCI 8015750
43	WASHERS (2)
44	WCI 8015742
45	WCI 8015993
49	WCI 8003144
50	WCI 8003148
51	SCREWS (2)
