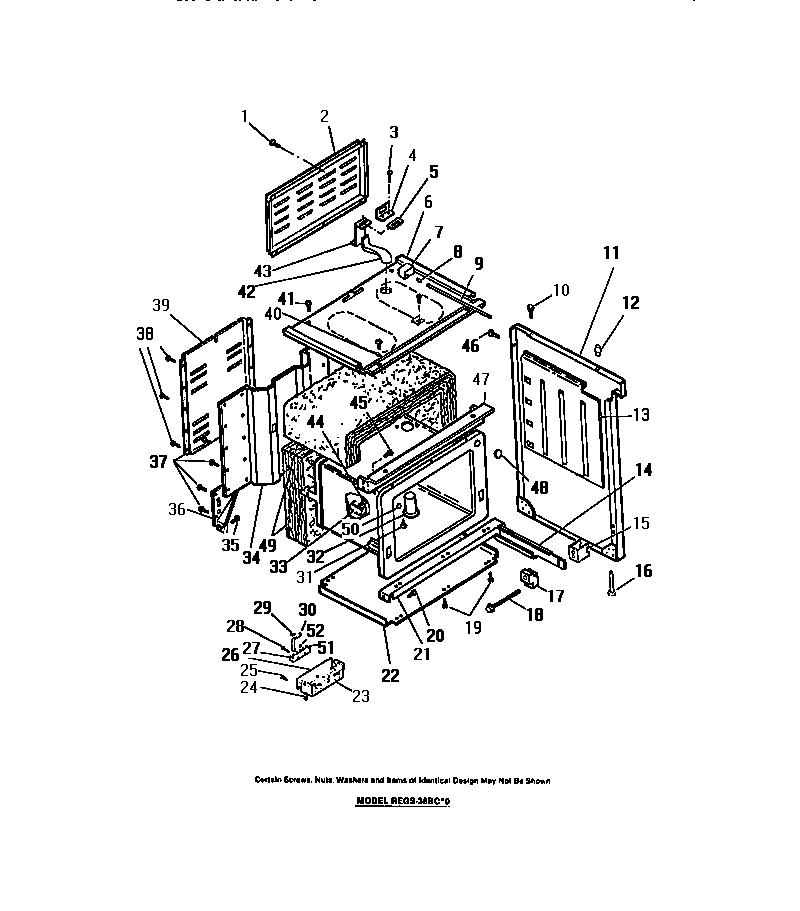

REGS36BCL0 10 – OVEN CAVITY

REGS36BCL0 10 – OVEN CAVITY

Written by

in

REGS36BCL0 10 – OVEN CAVITY

Products

Position	Product
2	WCI 8012513
4	BRACKET, DOOR LATCH SWITCH
5	WCI 8014261
6	WCI 8014247
7	WCI 8003081
8	WCI 8007444
9	WCI 8007443
10	SCREWS (2)
11A	PANEL, LH SIDE, ALMOND
11	PANEL, RH SIDE, ALMOND
12	BUMPERS (4)
13	WCI 8012235
14	RAIL, RH
14A	RAIL, LH
15	SPACERS (2)
16	WCI 8005299
17	GUIDES (2)
18	SCREWS (2)
21	WCI 8002872
22	WCI 8002869
23	WCI 8003074
26	WCI 8003195
27	WCI 8003145
28	SCREWS (2)
29	SCREW, GROUND WIRE
30	WCI 8003146
31	SCREWS (2)
32	WCI 8012752
33	WCI 8002854
34	WCI 8011052
36	GUSSETS, RH
36A	GUSSETS, LH
39	WCI 8003194
40	WASHERS (2)
42	WCI 8014259
43	WCI 8014260
44	SCREW
46	SCREWS (2)
47	WCI 8008324
48	WCI 8002852
50	WCI 8003144
51	WASHER (6)
52	WCI 8003148
