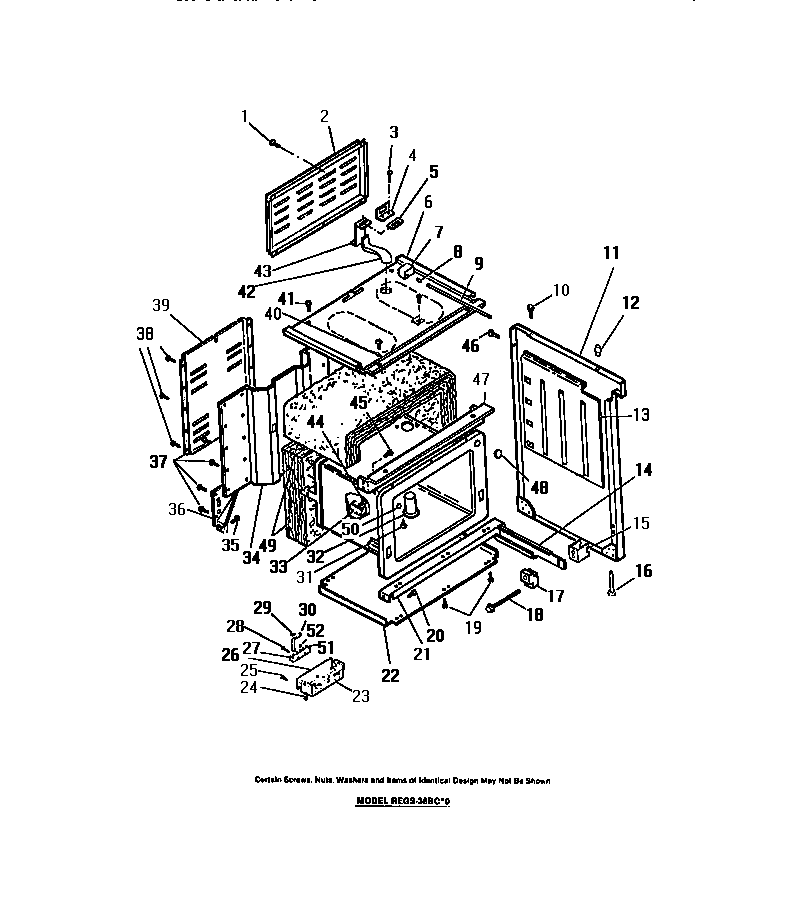

REGS36BCW0 10 – OVEN CAVITYadmin2025-04-26T08:47:18+00:00REGS36BCW0 10 – OVEN CAVITY
Products
| Position | Product |
|---|
| 2 | WCI 8012513 |
| 4 | BRACKET, DOOR LATCH SWITCH |
| 5 | WCI 8014261 |
| 6 | WCI 8014247 |
| 7 | WCI 8003081 |
| 8 | WCI 8007444 |
| 9 | WCI 8007443 |
| 10 | SCREWS (2) |
| 11A | PANEL, END, LH, WHITE |
| 11 | PANEL, END RH, WHITE |
| 12 | BUMPERS (4) |
| 13 | WCI 8012235 |
| 14A | RAIL, LH |
| 14 | RAIL, RH |
| 15 | SPACERS (2) |
| 16 | WCI 8005299 |
| 17 | GUIDES (2) |
| 18 | SCREWS (2) |
| 21 | WCI 8002872 |
| 22 | WCI 8002869 |
| 23 | WCI 8003074 |
| 26 | WCI 8003195 |
| 27 | WCI 8003145 |
| 28 | SCREWS (2) |
| 29 | SCREW, GROUND WIRE |
| 30 | WCI 8003146 |
| 31 | SCREWS (2) |
| 32 | WCI 8012752 |
| 33 | WCI 8002854 |
| 34 | WCI 8011052 |
| 36 | GUSSETS, RH |
| 36A | GUSSETS, LH |
| 39 | WCI 8003194 |
| 40 | WASHERS (2) |
| 42 | WCI 8014259 |
| 43 | WCI 8014260 |
| 44 | SCREW |
| 46 | SCREWS (2) |
| 47 | WCI 8008324 |
| 48 | WCI 8002852 |
| 50 | WCI 8003144 |
| 51 | WASHER (6) |
| 52 | WCI 8003148 |
