REGS37BFH2 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

REGS37BFH2 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Written by

in

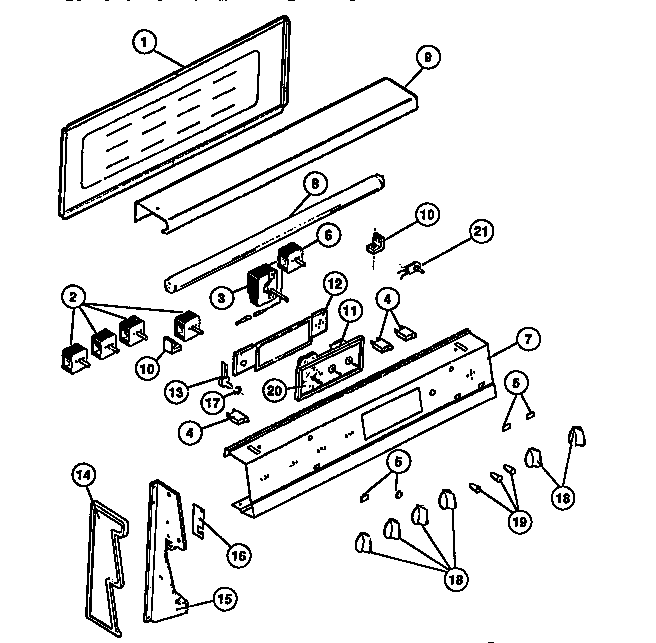

REGS37BFH2 02 – CONTROL PANEL, COOK-MASTER, SWITCHE

Products

PositionProduct
1COVER, WIRE.
25303935086 Frigidaire Oven Top Burner Switch Kit
2BSWITCH, S/U AUTO
3WCI 5308014203
4BLIGHT-PILOT OVEN & CLEAN
4IND LITE SURF UNIT
4AIND LITE OVEN
5LENS (2)
6WCI 5308015771
7WCI 3203186
8LAMP-FLUORESCENT, BACKGROUND
9WCI 5308016520
10RECEPTACLE-LAMP, RH / LH
11WCI 08012577
12BRACKET-MTG CLOCK
13SWITCH, FLUORESCENT
14WCI 08012745
14AWCI 08012746
15SUPPORT RH
15ASUPPORT LH
16BRACKET, HINGE (2)
17WCI 08003125
18WCI 5308015741
19WCI 3016387
20WCI 5308004154
21WCI 3205397
