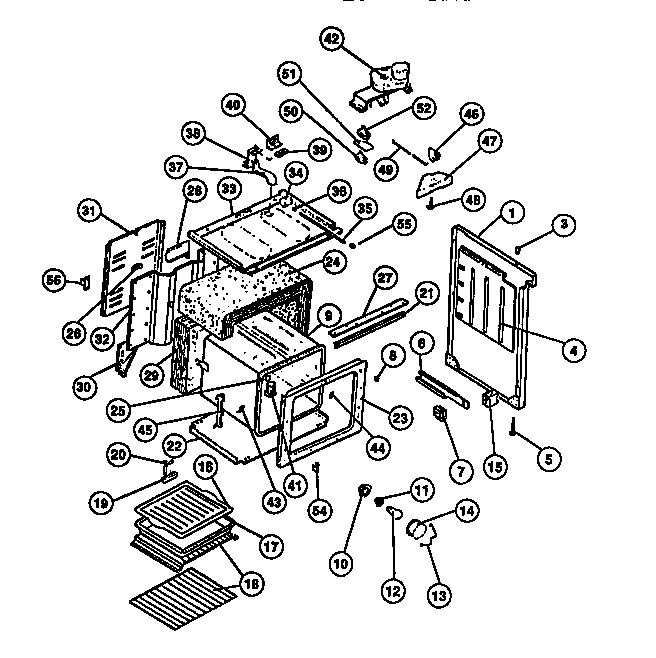

REGS37BFH2 04 – OVEN LINER, SIDE PANELS

Products

Position	Product
1E	WCI 08012536
1B	SIDE PANEL-RH WHEAT
3	BUMPER, COOKTOP (4)
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6	WCI 5308015746
6A	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	BODY-OVEN
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	GRILLE, BROILER
17	WCI 3205539
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WCI 5303207391
22	WCI 3206275
23	WCI 5303207390
25	PLUG BUTTON (NON-ILLUSTRATED)
26	WCI 3016281
27	WCI 5303207389
28	WCI 3051634
29	INSULATION
30	WCI 3017481
30A	WCI 3017482
31	WIRE, COVER
32	PANEL-BACK
33	WCI K005025704
34	SWITCH, DOOR
35	ROD-SWITCH
36	WCI 08007444
37	WCI 3051655
38	BRACKET, VENT TUBE
39	GASKET, OVEN VENT TUBE
40	BRACKET-DOOR SW
41	TUBE-OVEN VENT
42	LATCH, MOTOR
43	WCI 3201632
44	WCI 3203082
45	WCI 3201631
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	AXLE – HINGE (2)
49	WCI 3051649
50	SWITCH, LOWER
51	WCI 08003090
52	SWITCH-LOWER
54	WCI 3019063
55	WCI 3051251
56	BALLAST-LAMP (NON-ILLUSTRATED)
56B	WCI 5300009126
56A	ANTI-TIP KIT, (NON-ILLUSTRATED)
