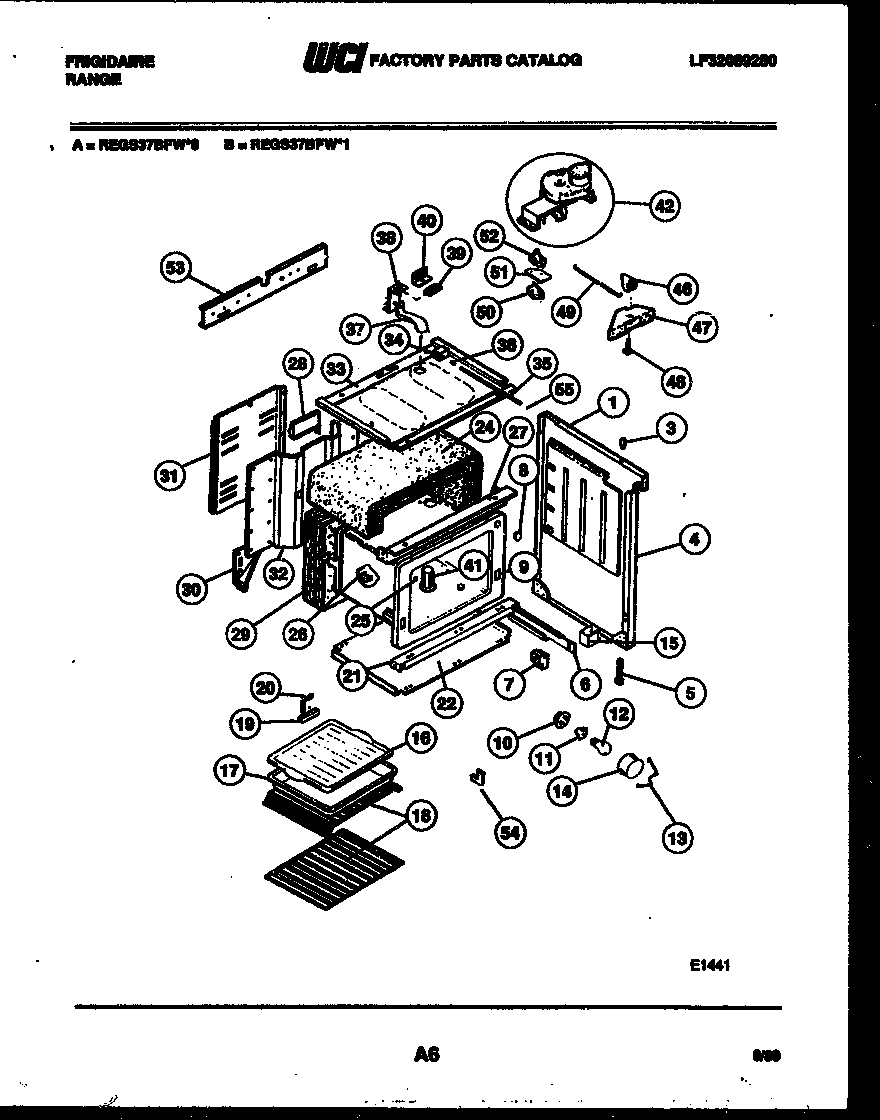

REGS37BFW1 04 – BODY PARTS

Products

Position	Product
*19316	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 08012527
3	BUMPER – COOKTOP (4)
4	WCI 08012235
5	LEG, LEVELLER (4)
6A	RAIL, DRAWER LH
6	WCI 08015746
7	WCI 08003103
8	WCI 3051784
9	OVEN LINER
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 08011087
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 3205234
17	WCI 3205232
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3203574
25	PLUG BUTTON – THERMO BULB HOLE
26	BRACKET-THERMO BULB (2)
27	CHANNEL, OVEN SUPPORT UPPER
28	WCI 08015742
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER – WIRE
32	WCI 3017575
33	WCI 08014247
33A	WCI 08002487
34	SWITCH – DOOR
35	ROD-SWITCH
36	WCI 08007444
37	WCI 08014259
38	WCI 08014260
39	GASKET, OVEN VENT TUBE
40	BRACKET-DOOR SW
41	WCI 08012752
42	MOTOR-LATCH
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	WCI 08003184
49	WCI 3051649
50	WCI 3007889
51	WCI 08003090
52	WCI 08003092
53	WCI 3009190
54	WCI 3051810
55	WCI 3051251
