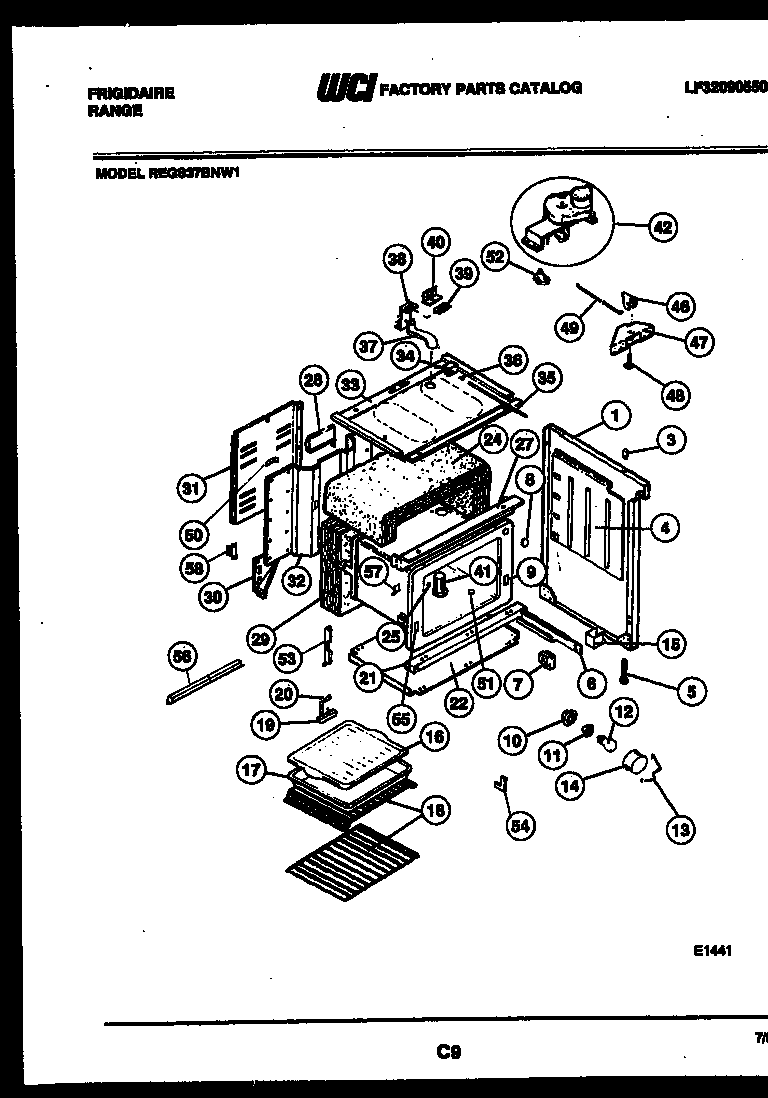

REGS37BNL1 04 – BODY PARTS

Products

PositionProduct
1SIDE PANEL LH-ALMD
1SIDE PANEL RH-ALMD
3BUMPER, COOKTOP (4)
4RETAINER, INSULATION (2)
5SCREW-LEVELING (4)
6ARAIL, DRAWER LH
6WCI 5308015746
7GUIDE-DRAWER FRNT (2)
8WCI 3051784
9WCI 5303207514
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINER-LENS
145304524341 Frigidaire Lens
15SPACER, DRAWER RAIL (2)
16GRILLE, BROILER
17WCI 3205539
18ARACK-OFFSET
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE=GROUND STRAP
21WCI 3205257
22WCI 3206275
25PLUG BUTTON (NON-ILLUSTRATED)
27WCI 5303207389
28WCI 3051634
29INSULATION
30AWCI 3017482
30WCI 3017481
31WIRE, COVER
32PANEL-BACK
33AWCI 5308002487
33WCI K005025704
34WCI 3205260
35ROD-SWITCH
36WCI 08007444
37WCI 3051655
38BRACKET, VENT TUBE
39GASKET, OVEN VENT TUBE
40BRACKET-LIGHT SWITCH
41TUBE-OVEN VENT
42LATCH – MOTOR
46LATCH-DOOR
47HOUSING-DOOR LATCH
48AXLE – HINGE (2)
49WCI 3051649
50A316217002 Frigidaire Oven Temperature Probe
50WCI 3016281
51WCI 3202082
52WCI 3202393
53WCI 3201631
54WCI 3019063
55WCI 5303207390
55AANTI-TIP KIT, (NON-ILLUSTRATED)
56WCI 5303207391
57WCI 3201632
58BALLAST-LAMP (NON-ILLUSTRATED)
