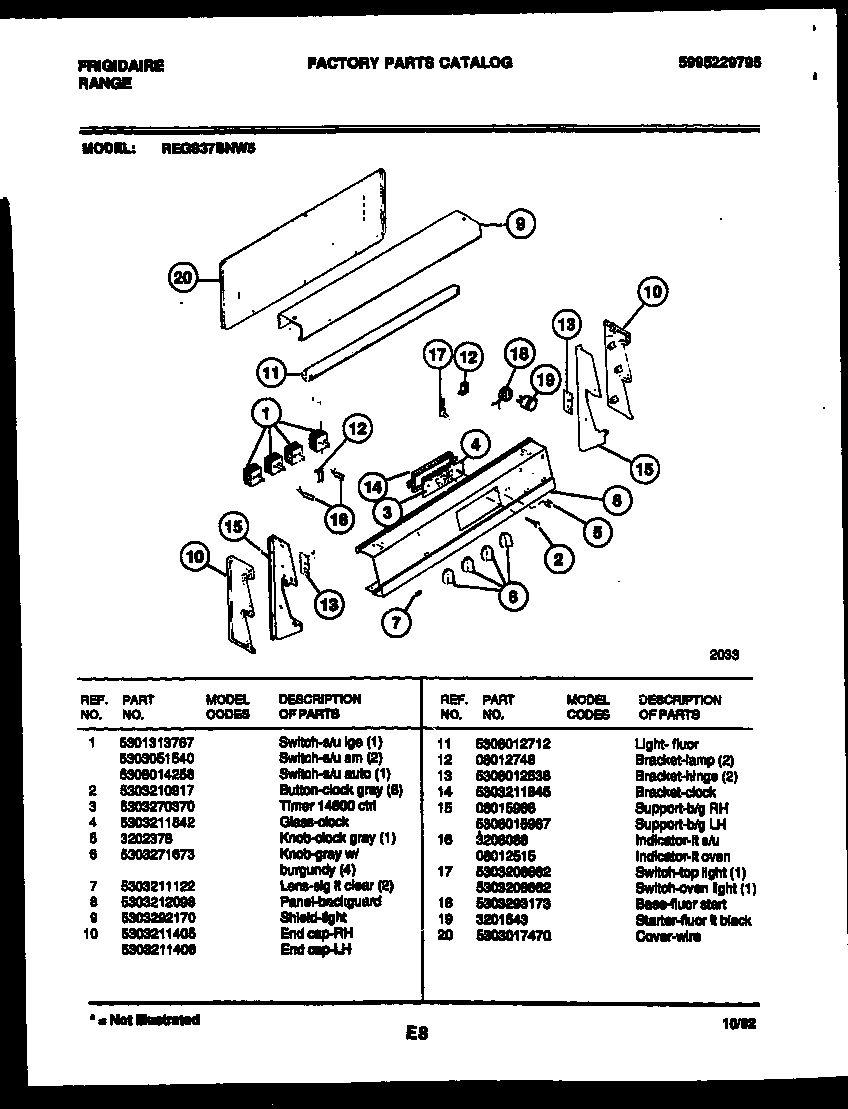

REGS37BNL5 02 – BACKGUARD

Products

Position	Product
1	5303935086 Frigidaire Oven Top Burner Switch Kit
1B	SWITCH, S/U AUTO
2	BUTTON-CLOCK GRAY (8)
3	TIMER 14600 CTL
4	WCI 5303211842
5	KNOB – CLOCK (GRAY)
6	KNOBS (6)
7	LENS (3)
8	WCI 5303212098
9	TRIM-BACKGUARD, TOP
10	WCI 5303211405
10A	WCI 5303211406
11	LAMP-FLUORESCENT, BACKGROUND
12	RECEPTACLE-LAMP, RH / LH
13	BRACKET, HINGE (2)
14	BRACKET – CLOCK MTG
15	SUPPORT RH
15A	SUPPORT – LH
16A	IND LITE OVEN
16	IND LITE SURF UNIT
17A	5308015487 Frigidaire Switch-Oven Light
18	RECEPTACLE-STARTER
19	WCI 3201543
20	COVER, WIRE.
