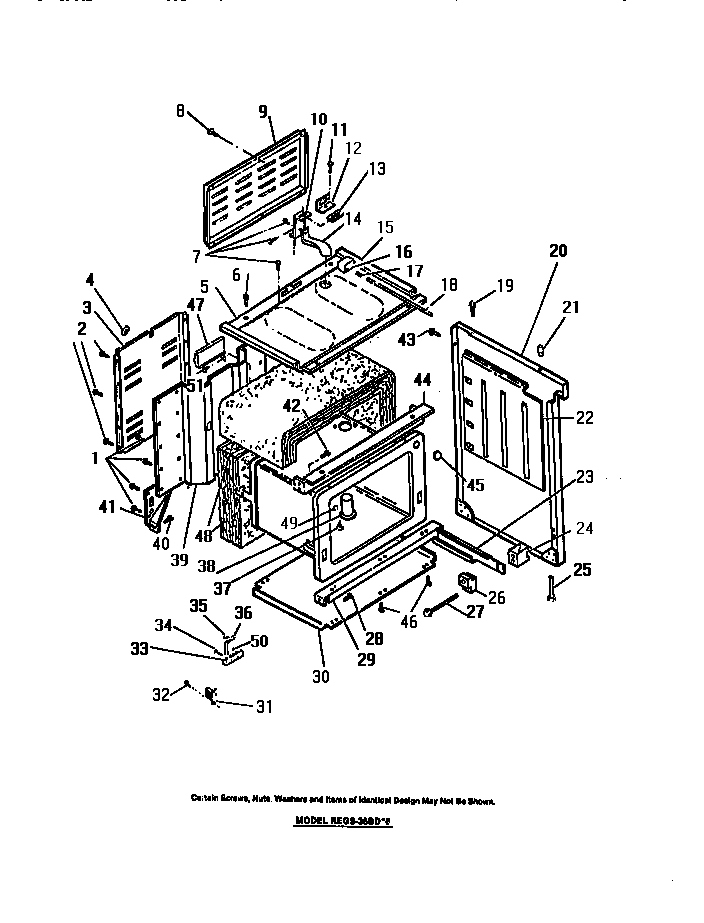

REGS38BDL0 07 – OVEN LINER, SIDE PANELS

REGS38BDL0 07 – OVEN LINER, SIDE PANELS

Written by

in

REGS38BDL0 07 – OVEN LINER, SIDE PANELS

Products

Position	Product
3	WCI 8015750
4	WASHERS (2)
5	WCI 8015993
9	WCI 8012513
10	WCI 8014260
12	BRACKET, DOOR LATCH SWITCH
13	WCI 8014261
14	WCI 8014259
15	WCI 8014247
16	WCI 8003081
17	WCI 8007444
18	WCI 8007443
19	SCREWS (2)
20C	PANEL, LH SIDE, ALMOND
20A	PANEL, RH SIDE, ALMOND
21	BUMPERS (4)
22	WCI 8012235
23A	RAIL, LH DRAWER
23	RAIL, RH DRAWER
24	SPACERS (2)
25	SCREWS LEVELING (4)
26	GUIDES (2)
27	SCREWS (2)
29	WCI 8002872
30	WCI 8015751
31	WCI 8015752
33	BLOCK
34	SCREWS (2)
35	SCREW, GROUND WIRE
36	WCI 8003146
37	SCREWS (2)
38	WCI 8012752
39	WCI 8017095
41A	WCI 8015977
41	WCI 8015976
44	WCI 8008324
45	WCI 8002852
47	WCI 8015742
48	WCI 8013680
49	WCI 8003144
50	WCI 8003148
51	SCREWS (2)
