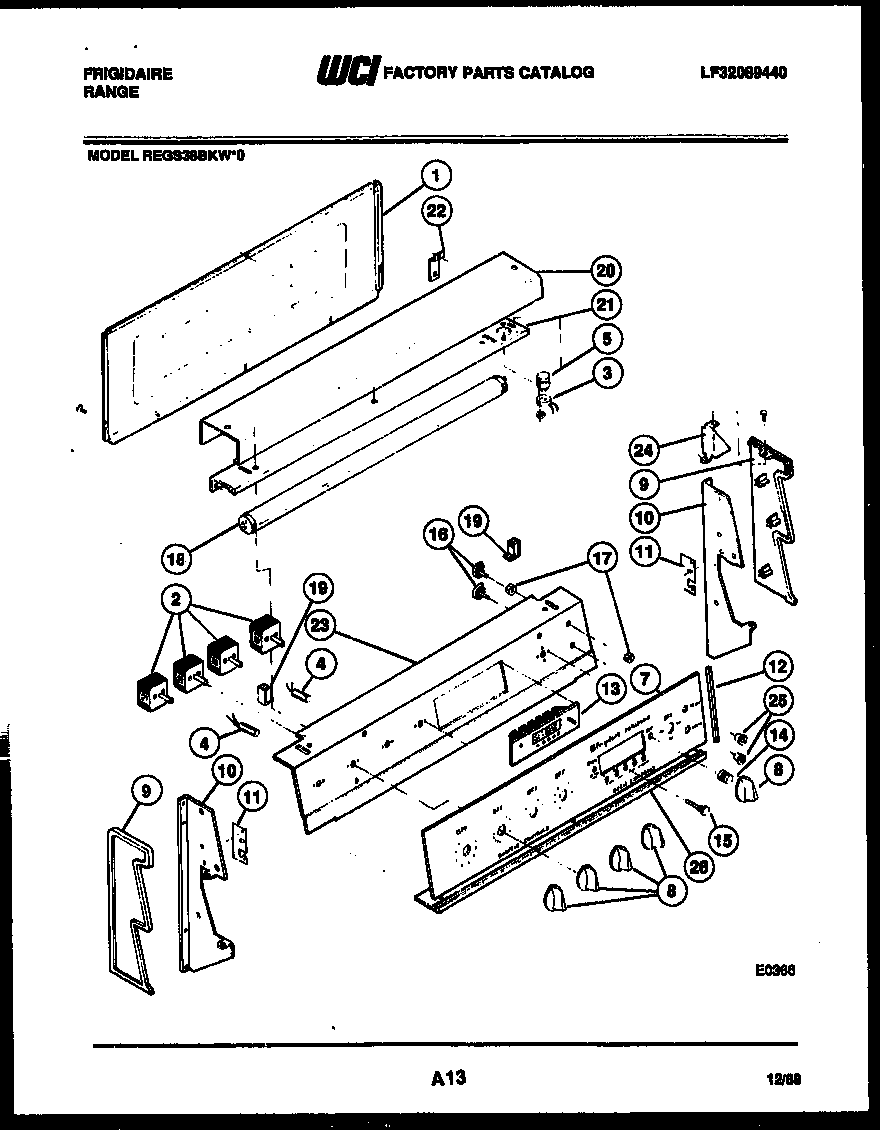

REGS38BKW0 02 – BACKGUARD

REGS38BKW0 02 – BACKGUARD

Written by

in

REGS38BKW0 02 – BACKGUARD

Products

PositionProduct
*28159WCI 3205136
1WCI 3017470
2ASWITCH S/U LARGE (2)
2WCI 08017079
2BWCI 08017083
3BASE-FLUOR LIGHT STARTER
4LIGHT-PILOT S/U
5STARTER-FLUOR LIGHT
7WCI 3205216
8WCI 08015741
9WCI 08015975
9AWCI 08015974
10SUPPORT RH
10ASUPPORT LH
11WCI 08012538
12TRIM-CONTROL PANEL
13WCI 3205213
14KNOB ELECT OVEN CONTROL (1)
15BUTTON ELECTRONIC (8)
16SWITCH-FLUOR LIGHT & OVEN LIGHT (2)
17WCI 08003125
18WCI 08012712
19RECEPTACLE-LAMP, RH / LH
20WCI 08017091
21SUPPORT-RECEPTABLE
22WCI 08017090
23PLATE, INSTUMENT MTG
24BRACKET-BACKGUARD, (2)
25WCI 3016305
26BASE PLATE-CONTROL PANEL
