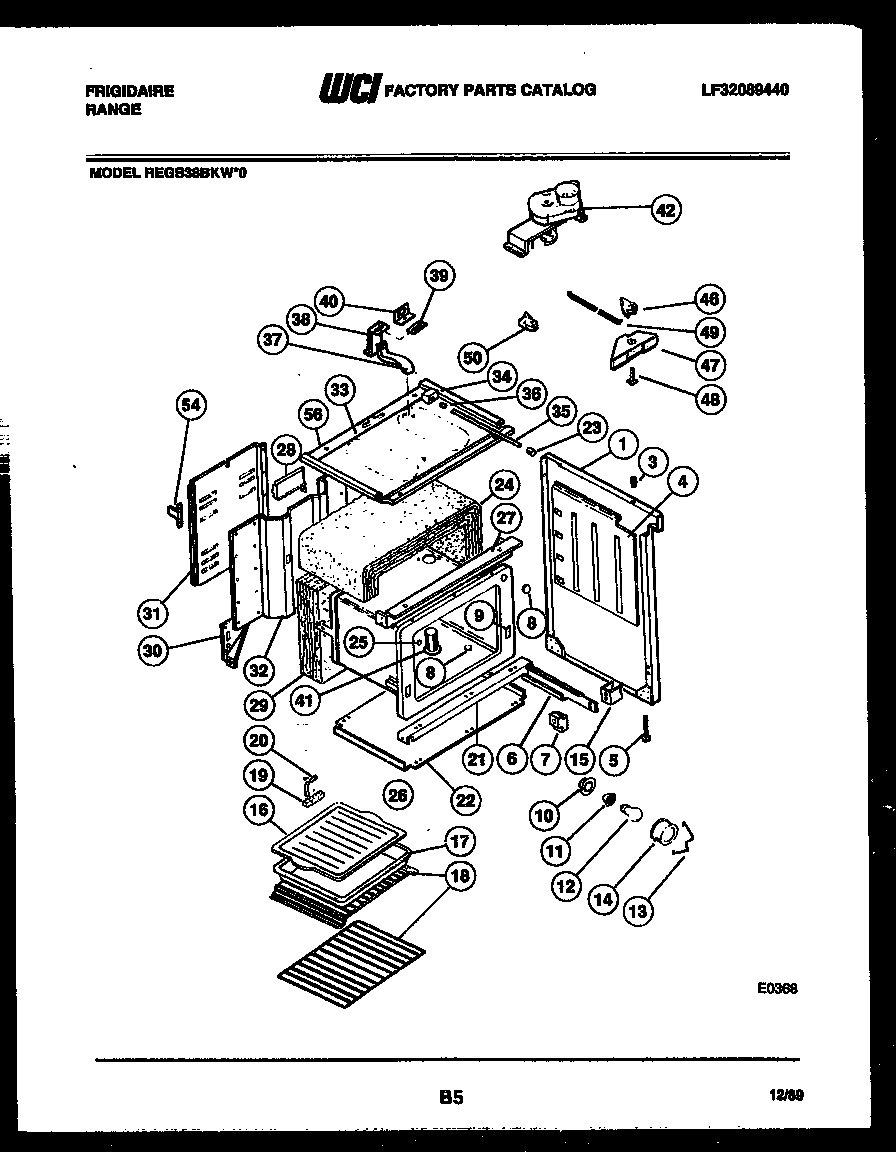

REGS38BKW0 06 – BODY PARTS

Products

Position	Product
*28164	ANTI-TIP KIT, (NON-ILLUSTRATED)
1A	WCI 08012528
1	WCI 08012527
3	BUMPER
4	WCI 08012235
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	WCI 08003103
9	WCI 3205272
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 3051515
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 3205234
17	WCI 3205232
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 3051696
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3203574
23	WCI 3051251
24	WCI 3051628
25	PLUG BUTTON – THERMO BULB HOLE
26	316217002 Frigidaire Oven Temperature Probe
27	CHANNEL, OVEN SUPPORT UPPER
28	WCI 3051634
29	INSULATION-OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31	COVER – WIRE
32	WCI 3205259
33	WCI K005025704
34	WCI 3205260
35	WCI 08007445
36	WCI 08007444
37	WCI 08014259
38	BRACKET, VENT TUBE
39	GASKET, OVEN VENT TUBE
40	BRACKET-LIGHT SWITCH
41	WCI 08012752
42	LATCH – MOTOR
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	WCI 08012004
49	WCI 3051649
50	WCI 3202393
54	BALLAST-LAMP (NON-ILLUSTRATED)
56	WCI 08015993
