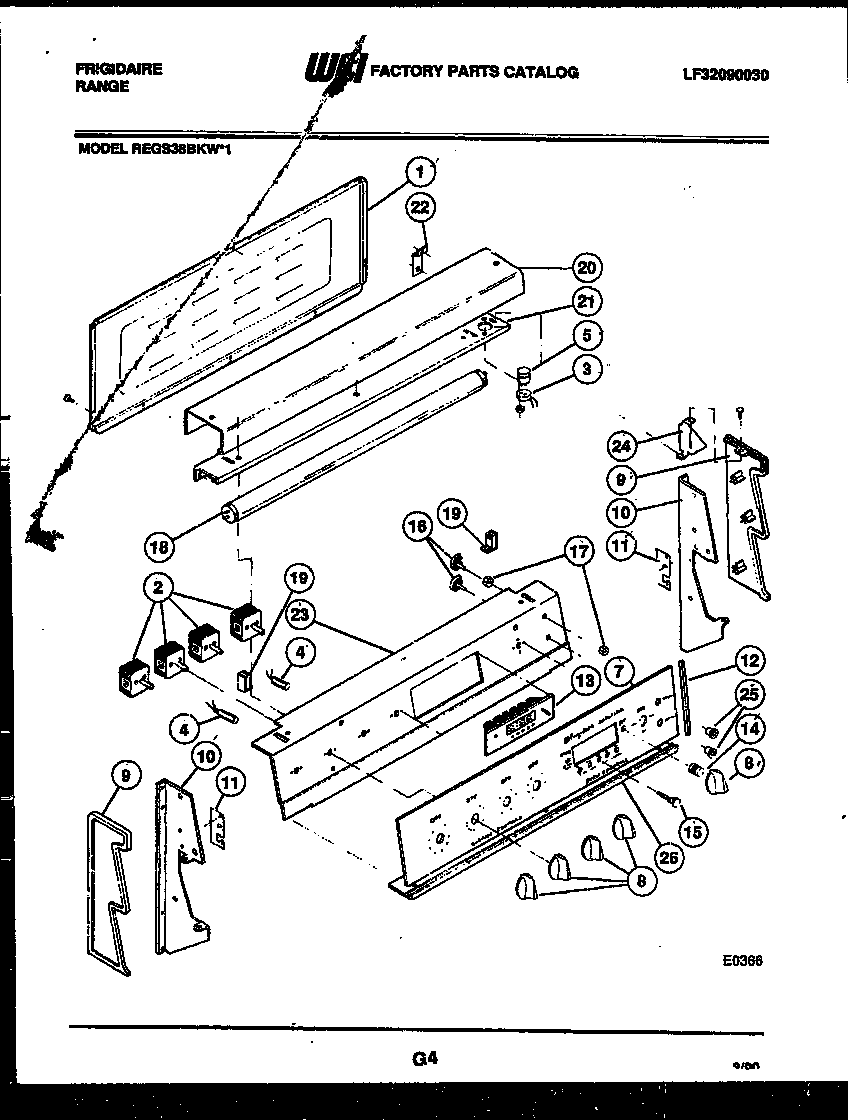

REGS38BKW1 02 – BACKGUARD

Products

Position	Product
*10947	WCI 3205136
1	COVER, WIRE.
2A	SWITCH-8`` ELEMENT
2B	SWITCH-TOP UNIT-AUTO-MED
2	SWITCH-6`` ELEMENT
3	BASE-FLUOR LIGHT STARTER
4	LIGHT-PILOT S/U
5	STARTER-FLUOR LIGHT
7	WCI 3205216
8	WCI 5308015741
9	WCI 08015975
9A	WCI 08015974
10A	SUPPORT LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
12	TRIM-CONTROL PANEL
13	WCI 3205213
14	KNOB ELECT OVEN CONTROL (1)
15	BUTTON ELECTRONIC (8)
16	SWITCH-FLUOR LIGHT & OVEN LIGHT (2)
17	NUT - HEX FLAT
18	LAMP-FLUORESCENT, BACKGROUND
19	RECEPTACLE-LAMP, RH / LH
20	WCI 08017091
21	SUPPORT-RECEPTABLE
22	WCI 08017090
23	PLATE, INSTUMENT MTG
24	BRACKET-BACKGUARD, (2)
25	WCI 5303016305
26	BASE PLATE-CONTROL PANEL
