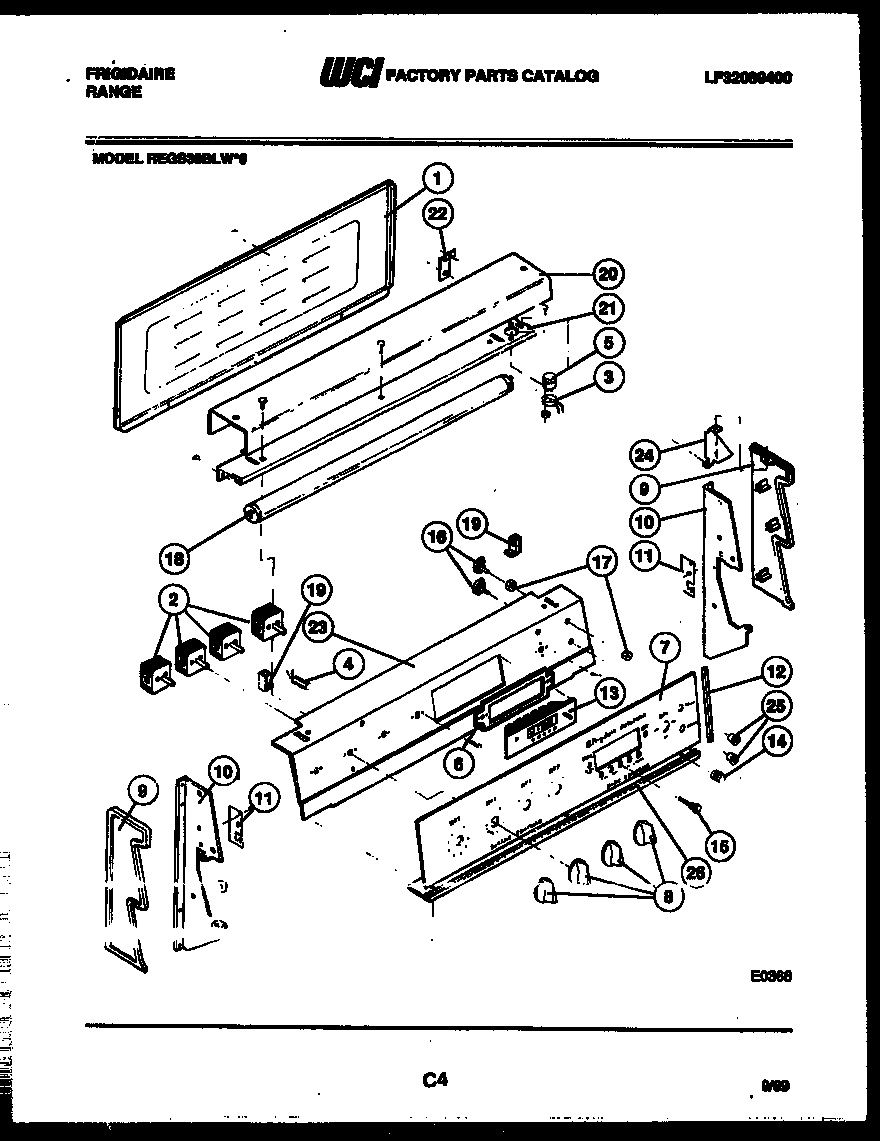

REGS38BLL0 02 – BACKGUARD

REGS38BLL0 02 – BACKGUARD

Written by

in

REGS38BLL0 02 – BACKGUARD

Products

PositionProduct
*26355WCI 3205136
1WCI 3017470
2SWITCH S/U SMALL (2)
2BWCI 08017083
2ASWITCH S/U LARGE (2)
3BASE-FLUOR LIGHT STARTER
4LIGHT-PILOT S/U
5STARTER-FLUOR LIGHT
6WCI 3206118
7WCI 3206116
8WCI 3206117
9WCI 08015975
9AWCI 08015974
10SUPPORT RH
10ASUPPORT LH
11WCI 08012538
12TRIM-CONTROL PANEL
13WCI 3205213
14KNOB – CLOCK (GRAY)
15BUTTON – CLOCK (GRAY) (8)
16WCI 08003383
17WCI 08003125
18WCI 08012712
19RECEPTACLE-LAMP, RH / LH
20WCI 08017091
21SUPPORT-RECEPTABLE
22WCI 08017090
23PLATE, INSTUMENT MTG
24BRACKET-BACKGUARD, (2)
25NUT-KNURLED
26BASE PLATE-CONTROL PANEL
