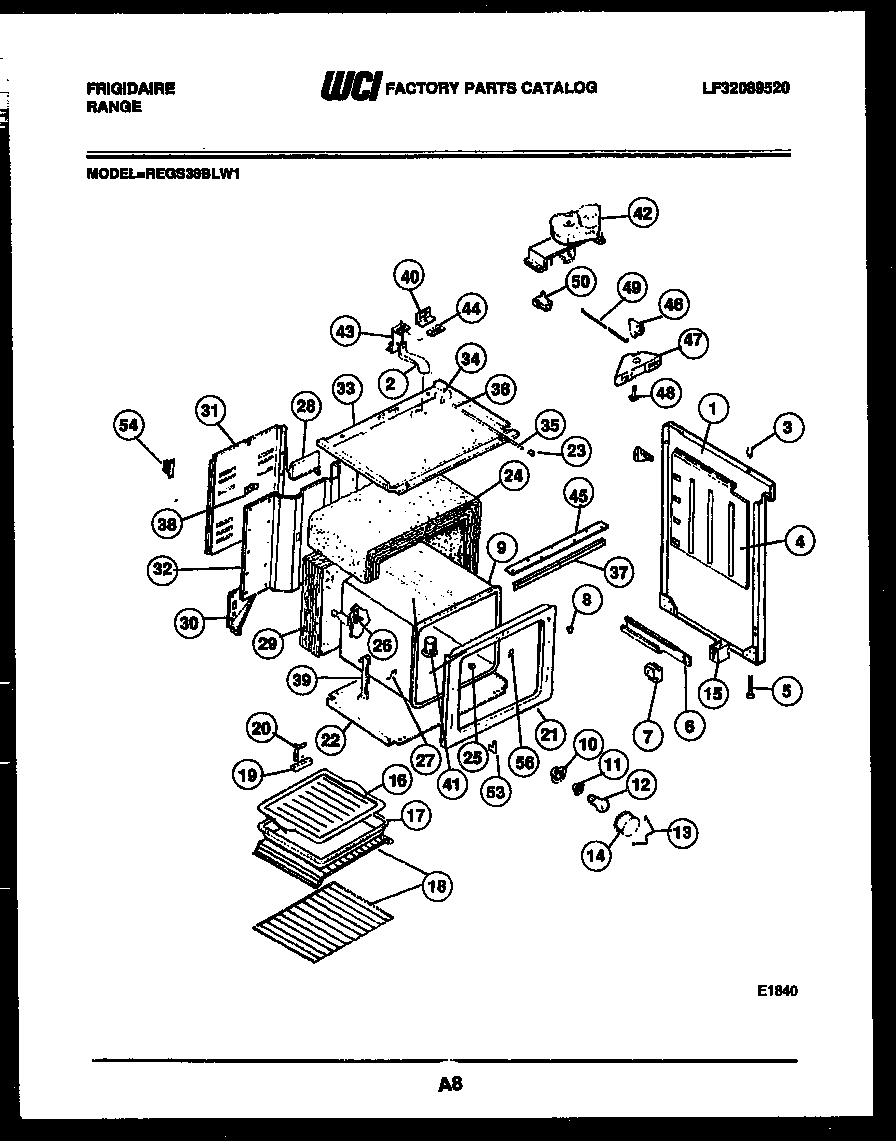

REGS38BLW1 06 – BODY PARTS

Products

Position	Product
*28089	WCI 3205257
*28089	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 08012527
1A	WCI 08012528
2	WCI 3051655
3	BUMPER – COOKTOP (4)
4	RETAINER, INSULATION (2)
5	LEG, LEVELLER (4)
6A	RAIL, DRAWER LH
6	WCI 08015746
7	GUIDE-DRAWER FRNT (2)
8	WCI 3051784
9	WCI 5303207514
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER – LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	GRILLE, BROILER
17	WCI 3205232
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	WCI 5303207390
22	WCI 3206275
23	WCI 3051251
24	WCI 3015630
25	PLUG BUTTON (NON-ILLUSTRATED)
26	316217002 Frigidaire Oven Temperature Probe
27	WCI 3201632
28	WCI 3051634
29	INSULATION-OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31	COVER – WIRE
32	PANEL-BACK
33	WCI K005025704
34	WCI 3205260
35	WCI 08007445
36	WCI 08007444
37	WCI 5303207391
38	WCI 3016281
39	WCI 3201631
40	BRACKET-LIGHT SWITCH
41	TUBE-OVEN VENT
42	LATCH – MOTOR
43	BRACKET, VENT TUBE
44	GASKET, OVEN VENT TUBE
45	WCI 5303207389
46	WCI 3202387
47	HOUSING-DOOR LATCH
48	WCI 08003095
49	WCI 3051649
50	WCI 3202393
53	WCI 3019063
54	BALLAST-LAMP (NON-ILLUSTRATED)
56	WCI 3202082
