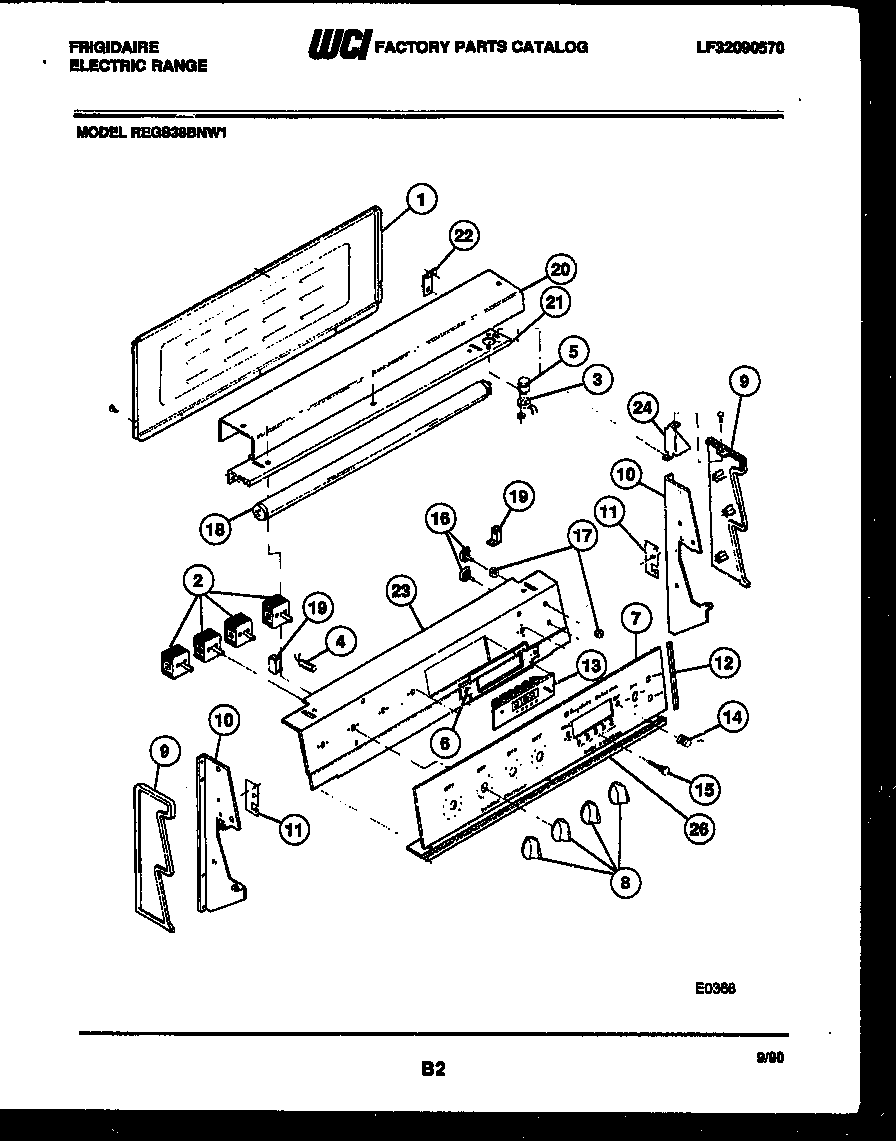

REGS38BNW1 02 – BACKGUARD

Products

PositionProduct
*34857WCI 3205136
1COVER, WIRE.
2ASWITCH-8“ ELEMENT
2SWITCH-6“ ELEMENT
2BSWITCH-TOP UNIT-AUTO-MED
3BASE-FLUOR LIGHT STARTER
4LIGHT/LAMP, INDICATOR, 250 V
4ALIGHT-PILOT S/U
5WCI 3201543
6WCI 3206118
7WCI 5303212190
8KNOBS-GRAY & BURGUNDY (6)
9WCI 08015975
9AWCI 08015974
10ASUPPORT – LH
10SUPPORT RH
11BRACKET, HINGE (2)
12TRIM-CONTROL PANEL
13WCI 3205213
14KNOB – CLOCK (GRAY)
15BUTTON – CLOCK (GRAY) (8)
16SWITCH-FLUOR LIGHT & OVEN LIGHT (2)
17NUT-KNURLED
18LAMP-FLUORESCENT, BACKGROUND
19RECEPTACLE-LAMP, RH / LH
20WCI 5303210112
21SUPPORT-RECEPTABLE
22WCI 08017090
23PLATE, INSTUMENT MTG
24BRACKET-BACKGUARD, (2)
26BASE PLATE-CONTROL PANEL
