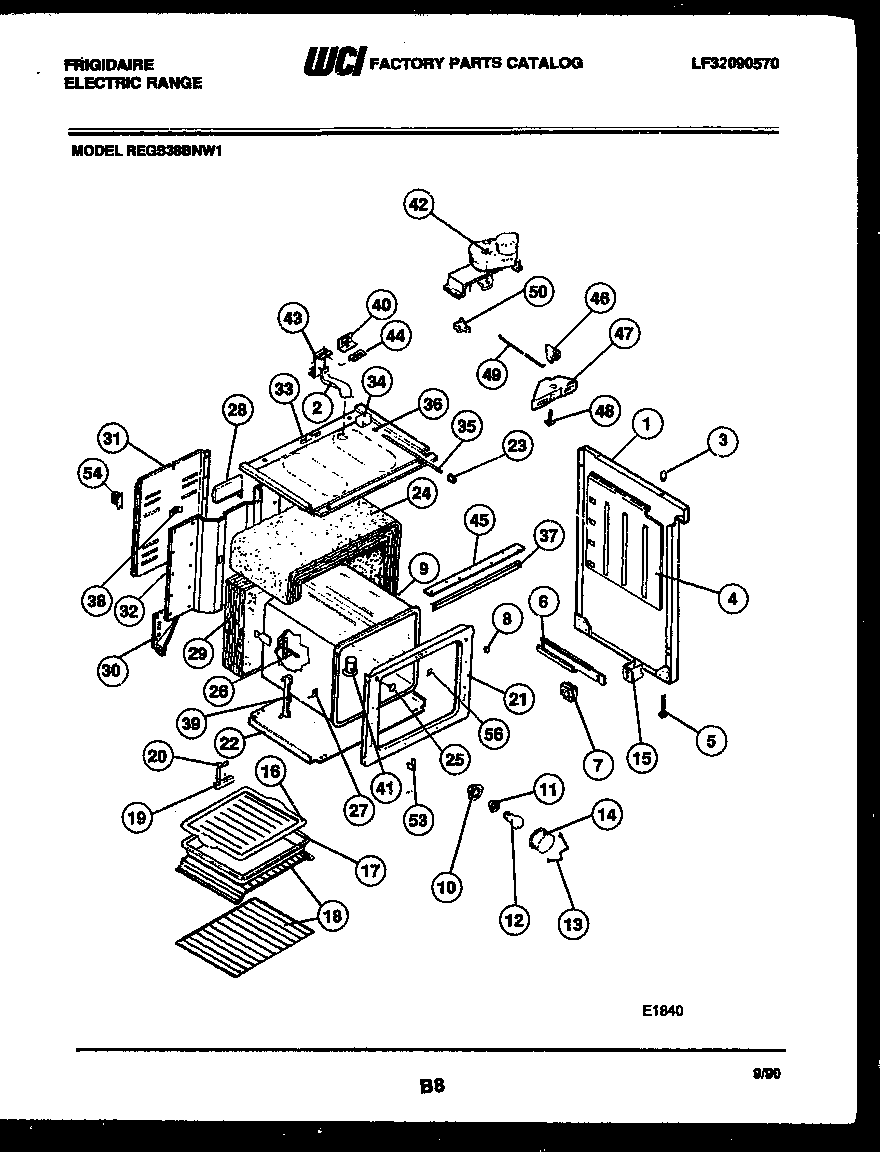

REGS38BNW1 06 – BODY PARTSadmin2025-04-26T11:47:13+00:00REGS38BNW1 06 – BODY PARTS
Products
| Position | Product |
|---|
| *34865 | ANTI-TIP KIT, (NON-ILLUSTRATED) |
| *34866 | WCI 3205257 |
| 1 | SIDE PANEL, RH WHITE |
| 2 | WCI 3051655 |
| 3 | BUMPER, COOKTOP (4) |
| 4 | RETAINER, INSULATION (2) |
| 5 | SCREW-LEVELING (4) |
| 6 | WCI 5308015746 |
| 6A | RAIL, DRAWER LH |
| 7 | GUIDE-DRAWER FRNT (2) |
| 8 | BUTTON-PLUG |
| 9 | WCI 5303207514 |
| 10 | WCI 3051511 |
| 11 | 316116400 Frigidaire Oven Light Socket |
| 12 | 316538904 Frigidaire Oven Lamp Light |
| 13 | RETAINER-LENS |
| 14 | 5304524341 Frigidaire Lens |
| 15 | SPACER, DRAWER RAIL (2) |
| 16 | GRILLE, BROILER |
| 17 | WCI 3205539 |
| 18A | RACK-OFFSET |
| 18 | 316067902 Frigidaire Oven Rack |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | PLATE=GROUND STRAP |
| 21 | WCI 5303207390 |
| 22 | WCI 3206275 |
| 23 | WCI 08067758 |
| 25 | PLUG BUTTON (NON-ILLUSTRATED) |
| 26 | 316217002 Frigidaire Oven Temperature Probe |
| 27 | WCI 3201632 |
| 28 | WCI 3051634 |
| 29 | INSULATION |
| 30A | WCI 3017482 |
| 30 | WCI 3017481 |
| 31 | WIRE, COVER |
| 32 | PANEL-BACK |
| 33 | WCI K005025704 |
| 34 | WCI 3205260 |
| 35 | WCI 08007445 |
| 36 | WCI 08007444 |
| 37 | WCI 5303207391 |
| 38 | WCI 3016281 |
| 39 | WCI 3201631 |
| 40 | BRACKET-LIGHT SWITCH |
| 41 | TUBE-OVEN VENT |
| 42 | LATCH - MOTOR |
| 43 | BRACKET, VENT TUBE |
| 44 | GASKET, OVEN VENT TUBE |
| 45 | WCI 5303207389 |
| 46 | LATCH-DOOR |
| 47 | HOUSING-DOOR LATCH |
| 48 | AXLE - HINGE (2) |
| 49 | WCI 3051649 |
| 50 | WCI 3202393 |
| 53 | WCI 3019063 |
| 54 | BALLAST-LAMP (NON-ILLUSTRATED) |
| 56 | WCI 3202082 |
