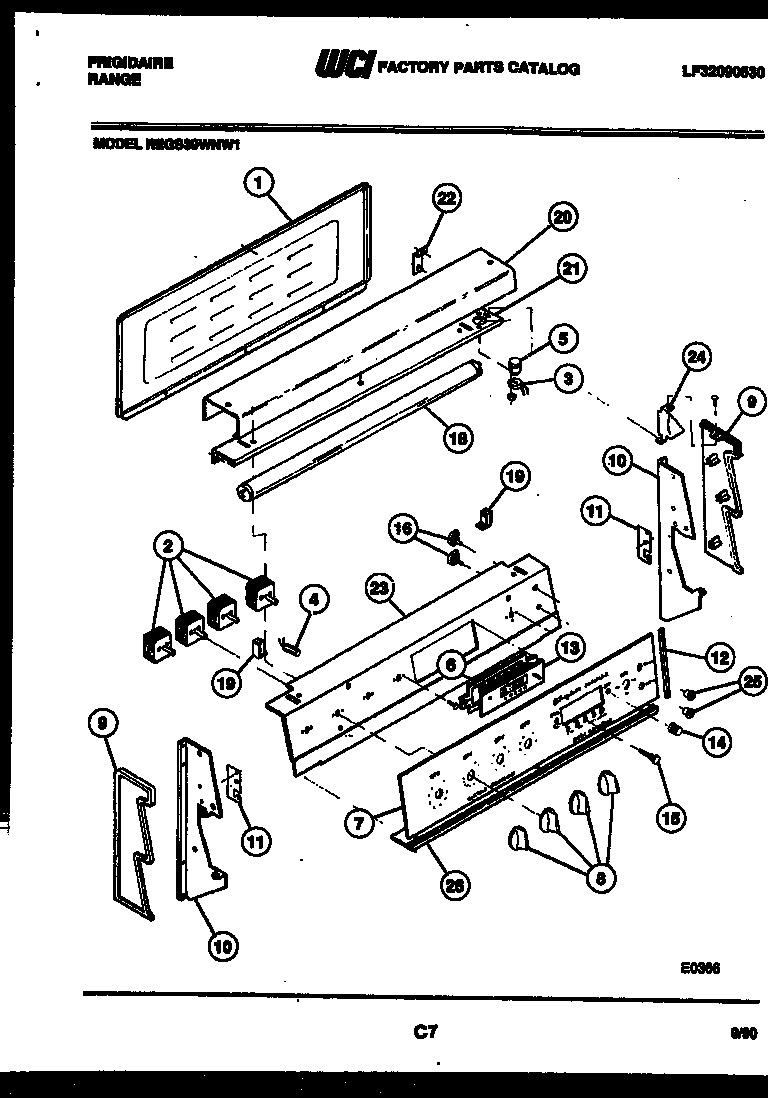

REGS39WNW1 02 – BACKGUARD

Products

Position	Product
*37864	WCI 3205136
1	COVER, WIRE.
2B	SWITCH-TOP UNIT-AUTO-MED
2A	SWITCH-8“ ELEMENT
2	SWITCH-6“ ELEMENT
3	BASE-FLUOR LIGHT STARTER
4	LIGHT-PILOT S/U
5	WCI 3201543
6	WCI 3206118
7	WCI 5303211913
8	WCI 3206170
9A	WCI 08015974
9	WCI 08015975
10	SUPPORT RH
10A	SUPPORT – LH
12	TRIM-CONT PANEL (2)
13	WCI 3205213
14	KNOB-CLOCK
15	KNOB-CLOCK (7)
16	SWITCH – FLUOR LIGHT & OVEN LIGHT (2)
18	LAMP-FLUORESCENT, BACKGROUND
19	RECEPTACLE-LAMP, RH / LH
20	WCI 3206172
21	SUPPORT-RECEPTABLE
22	WCI 08017090
23	PLATE, INSTUMENT MTG
24	BRACKET-BACKGUARD, (2)
25	WCI 3206171
26	BASE PLATE-CONTROL PANEL
