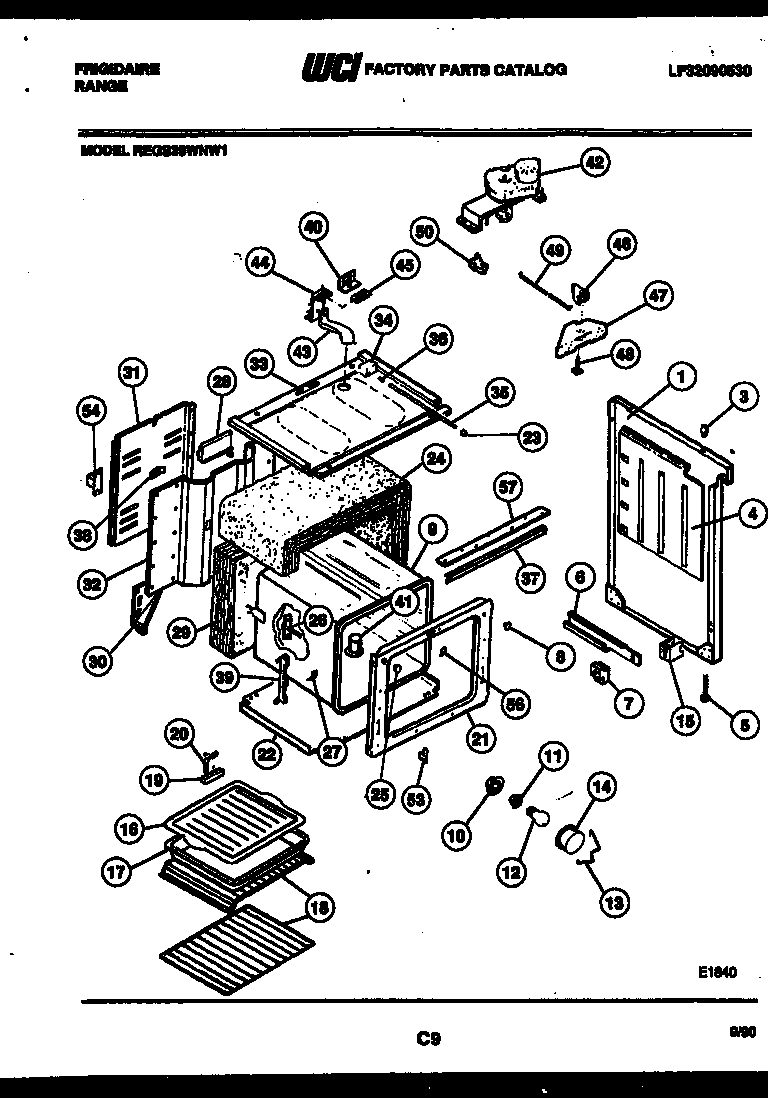

REGS39WNW1 03 – BODY PARTS

Products

Position	Product
1A	SIDE PANEL, LH WHITE
1	SIDE PANEL, RH WHITE
3	BUMPER, COOKTOP (4)
4	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6	WCI 5308015746
6A	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	WCI 5303207514
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	GRILLE, BROILER
17	WCI 3205539
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE=GROUND STRAP
21	WCI 5303207390
22	WCI 3206275
23	WCI 08067758
25	PLUG BUTTON (NON-ILLUSTRATED)
26	316217002 Frigidaire Oven Temperature Probe
27	WCI 3201632
28	WCI 3051634
29	INSULATION
30	WCI 3017481
30A	WCI 3017482
31	WIRE, COVER
32	PANEL-BACK
33	WCI K005025704
34	WCI 3205260
35	WCI 08007445
36	WCI 08007444
37	WCI 5303207391
38	WCI 3016281
39	WCI 3201631
40	BRACKET-LIGHT SWITCH
41	TUBE-OVEN VENT
42	LATCH – MOTOR
43	WCI 3051655
44	BRACKET, VENT TUBE
45	GASKET, OVEN VENT TUBE
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	AXLE – HINGE (2)
49	WCI 3051649
50	WCI 3202393
53	WCI 3019063
54	BALLAST-LAMP (NON-ILLUSTRATED)
56	WCI 3202082
56A	ANTI-TIP KIT, (NON-ILLUSTRATED)
56B	WCI 5303211407
57	WCI 5303207389
