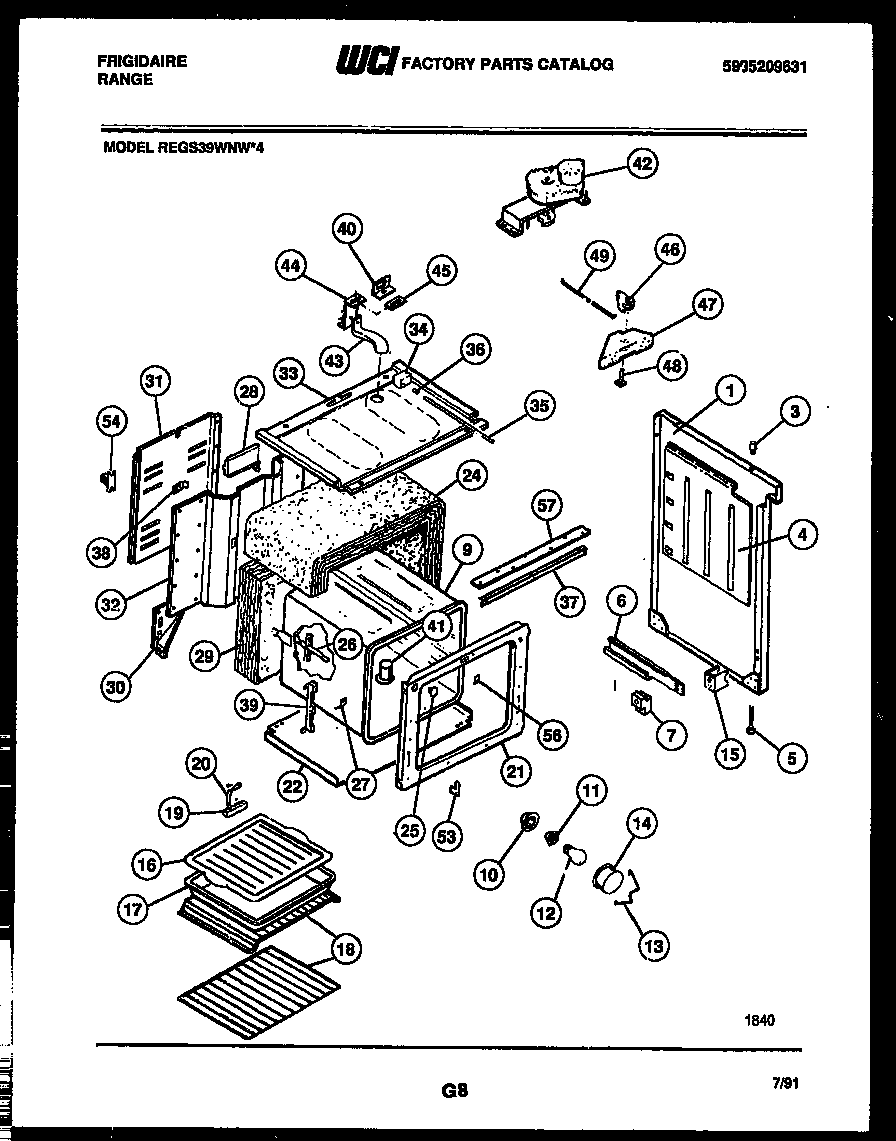

REGS39WNW4 03 – BODY PARTS

Products

Position	Product
*48886	WCI 19100210102
1A	SIDE PANEL, LH WHITE
1	SIDE PANEL, RH WHITE
3	BUMPER, COOKTOP (4)
4	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6	WCI 5308015746
6A	RAIL, DRAWER LH
7	GUIDE-DRAWER FRNT (2)
9	WCI 5303207514
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	GRILLE, BROILER
17	WCI 3205539
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE=GROUND STRAP
21	WCI 5303207390
22	WCI 3206275
24	INSULATION-OVEN BACK
25	PLUG BUTTON (NON-ILLUSTRATED)
26	316217002 Frigidaire Oven Temperature Probe
27	WCI 3201632
28	WCI 3051634
29	INSULATION
30	WCI 3017481
30A	WCI 3017482
31	WIRE, COVER
32	PANEL-BACK
33	WCI K005025704
34	SWITCH, DOOR
35	ROD-SWITCH
36	WCI 08007444
37	WCI 5303207391
38	WCI 3016281
39	WCI 3201631
40	WCI 3015356
41	TUBE-OVEN VENT
42	WCI 5303269766
43	WCI 3051655
44	BRACKET, VENT TUBE
45	GASKET, OVEN VENT TUBE
46	LATCH-DOOR
47	HOUSING-DOOR LATCH
48	AXLE – HINGE (2)
49	WCI 3051649
53	WCI 3019063
54	BALLAST-LAMP (NON-ILLUSTRATED)
56	WCI 3202082
56A	ANTI-TIP KIT, (NON-ILLUSTRATED)
57	WCI 5303207389
