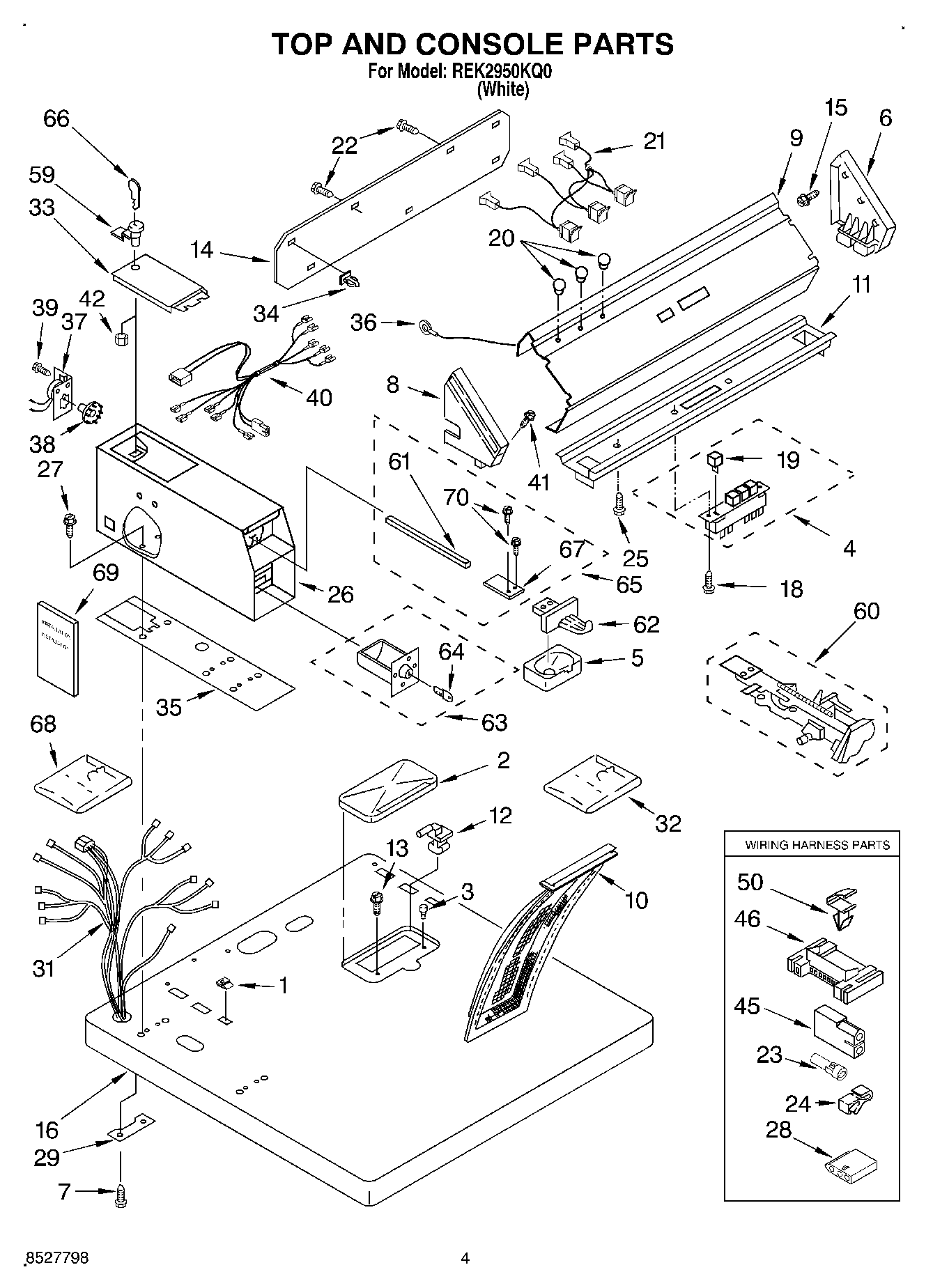

REK2950KQ0 03 – TOP AND CONSOLEadmin2025-04-26T13:16:04+00:00REK2950KQ0 03 – TOP AND CONSOLE
Products
| Position | Product |
|---|
| 1 | WP357213 Whirlpool Hinge Stopper |
| 2 | Cover, Lint Screen |
| 3 | Bumper, Lint Lid |
| 5 | WP385421 Whirlpool Coin Operated Laundry Funnel |
| 6 | Cap, End (R.H.) |
| 7 | W10841059 Whirlpool Screw |
| 8 | End Cap (L.H.) |
| 9 | Panel, Control |
| 10 | WP349639 Whirlpool Lint Filter |
| 11 | Bracket, Control |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | Panel, Rear |
| 15 | WPW10109200 Whirlpool Screw |
| 16 | Top |
| 18 | WP355214 Whirlpool Screw |
| 19 | SWITCH-PB |
| 20 | WP3348109 Whirlpool Light Lens |
| 21 | Lights, Indicator (240 Volts) |
| 22 | WP693995 Whirlpool Screw |
| 23 | Plug |
| 24 | W10113937 Whirlpool Clamp |
| 25 | WPW10139210 Whirlpool Screw |
| 26 | Case, Meter |
| 27 | W11715721 Whirlpool Screw Assembly |
| 28 | 353424 Whirlpool Connector |
| 29 | 3347825 Whirlpool Plate |
| 31 | Harness, Wiring |
| 32 | 279950 Whirlpool Funnel |
| 33 | W11283272 Whirlpool Washer Dryer Meter Case Access Door |
| 34 | WP689559 Whirlpool Nut |
| 35 | WP3954812 Whirlpool Cushion |
| 36 | Wire, Ground |
| 37 | 279737 Whirlpool Dryer Load Timer |
| 38 | WP339855 Whirlpool Cam |
| 38 | WP343777 Whirlpool Cam |
| 38 | WP3387974 Whirlpool Cam |
| 39 | 339805 Whirlpool Screw |
| 40 | 3401682 Whirlpool Wire Harness |
| 41 | WP388326 Whirlpool Screw |
| 42 | WP90406 Whirlpool Nut |
| 45 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 46 | 3395683 Whirlpool Connector |
| 50 | WP3394427 Whirlpool Clip |
| 59 | W11315637 Whirlpool Lock Assembly |
| 60 | Slide & Extension |
| 61 | WP8576635 Whirlpool Bolt |
| 62 | WPL 8316265 |
| 62 | W11126319 Whirlpool Washer Dryer Coin Chute |
| 62 | Inserts (Not Shown |
| 63 | W11190039 Whirlpool Coin Box Assembly |
| 64 | Key, Money Box (When Ordering, Specify Vendor of Money Box Lock) |
| 65 | HARNS-WIRE |
| 66 | Key, Service Door |
| 67 | 3390424 Whirlpool Extension |
| 68 | WPL 8316524 |
| 69 | WPL 8316532 |
| 70 | WPL 3400086 |
