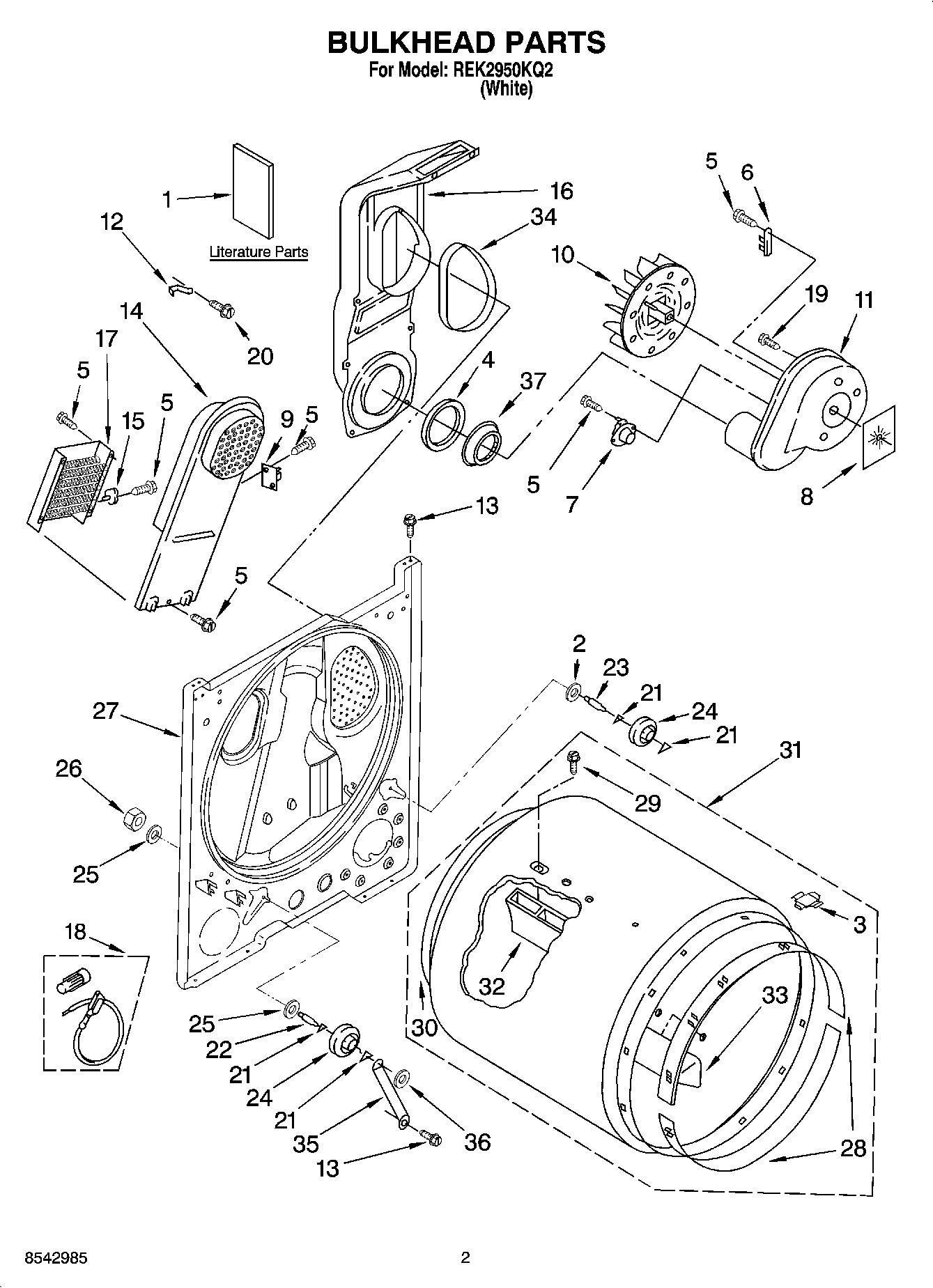

REK2950KQ2 01 – BULKHEAD PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Repair Parts List)
1	Literature Parts (Label, Wiring Diagram)
2	WP3388703 Whirlpool Washer
3	8066086 Whirlpool Plug
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP3387134 Whirlpool Dryer Cycling Thermostat
8	Seal, Blower
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
15	4392065 Whirlpool Dryer Maintenance Kit
15	350930 Whirlpool White Spray Paint
15	72017 Whirlpool Appliance Touch-Up Paint White
15	350938 Whirlpool Spray Gun
15	ACCESSORY PARTS

No products found
